| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T2848062A |

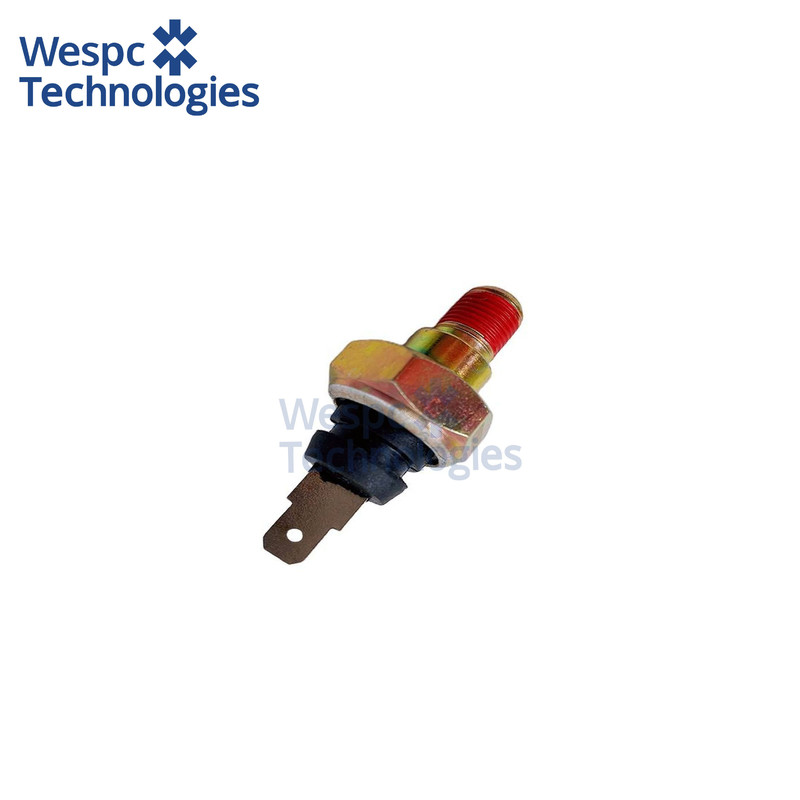

WESPC Pressure Sensor T2848062A For Perkins 1103-33 1103-33T 1104-44
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T2848062A |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Pressure Sensor T2848062A is engineered for the Perkins 1103-33, 1103-33T, 1104-44 and 1104-44T turbocharged diesel engines (3.3 L to 4.4 L). These engines are widely fitted to Massey Ferguson 2400/3400/5400 series agricultural tractors, MF 5700 SL orchard and vineyard tractors, mid-range combine harvesters, 50–120 kVA generator sets for prime or standby power, plus compact wheel loaders, skid-steer loaders and 7- to 14-ton hydraulic excavators used in construction, material handling and landscaping operations across global markets.
Technical specifications:
Thread interface 1/8-27 NPT with 19 mm hex and 12 mm probe reach for direct mounting into the engine block oil gallery. Operating pressure range 0–10 bar (0–145 psi), with a linear voltage output 0.5–4.5 Vdc across the full scale, supply voltage 5 ± 0.25 Vdc, accuracy ±1.5 % F.S.
Material & performance features:
Housing is turned from brass alloy and nickel-plated for complete immunity to engine oil, diesel fuel and road salt; the sensing element is a laser-welded 1.4571 (AISI 316Ti) stainless-steel diaphragm with thin-film strain gauges for excellent long-term stability.
Interchange part numbers:
T2848062A, 10000-28480, 4224841M1, 4222208M1, 2755A019
