| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848062 |

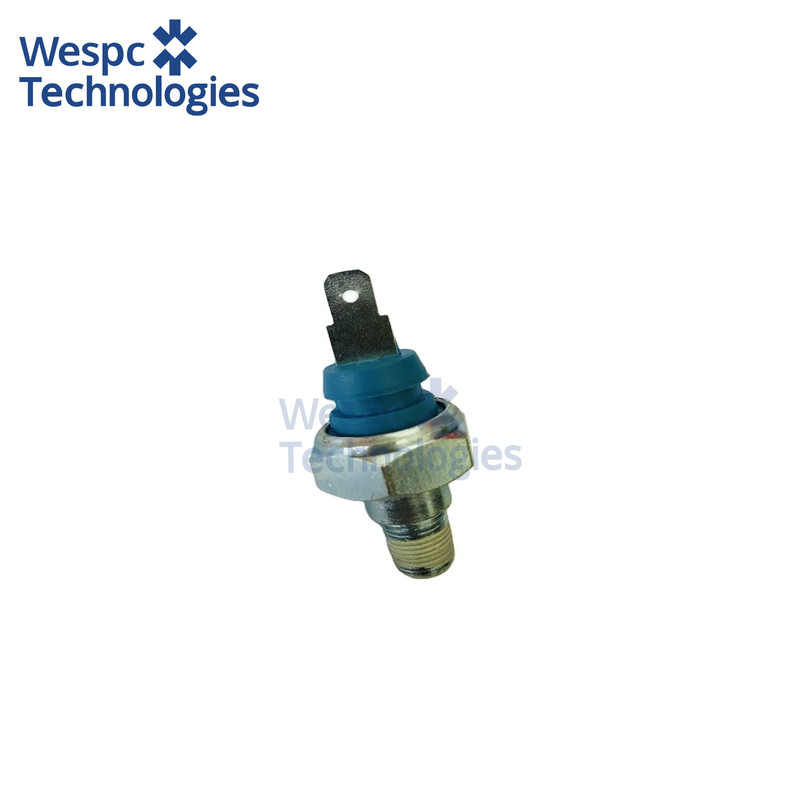

WESPC Oil Pressure Sensor 2848062 For Perkins 1104C-44T 1104D-44T Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848062 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Oil Pressure Sensor 2848062 is purpose-built for the Perkins 1104C-44T, 1104D-44T and AT4.236 turbocharged diesel engines (4.0 L). These engines are the power source for Massey Ferguson 2400, 3400 and 5400 series tractors, MF 5700 SL orchard models, mid-range combine harvesters, 50–120 kVA generator sets for prime or standby duty, plus compact wheel loaders, skid-steer loaders and 7- to 14-ton hydraulic excavators employed in agriculture, construction and material-handling sectors worldwide.
Technical specifications:
Thread interface 1/8-27 NPT male with 19 mm hex and 12 mm probe reach allows direct installation into the engine block oil gallery. Operating pressure range 0–10 bar (0–145 psi), warning contact 0.8 ± 0.3 bar, resistance curve 10 ± 3 Ω @ 0 bar, 52 ± 4 Ω @ 2 bar, 88 ± 4 Ω @ 4 bar, 124 ± 5 Ω @ 6 bar, 184 ± 10 Ω @ 8 bar.
Material & performance features:
Housing is precision-turned from brass alloy and nickel-plated for total immunity to engine oil, diesel fuel and road salt; the sensing element is a laser-welded stainless-steel diaphragm with integrated thick-film strain gauge for excellent long-term stability.
Interchange part numbers:
2848062, 10000-59835, 4181A022, 3638721M91, 747602M91, 1158145, WG1104543.
