| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | BX70C |

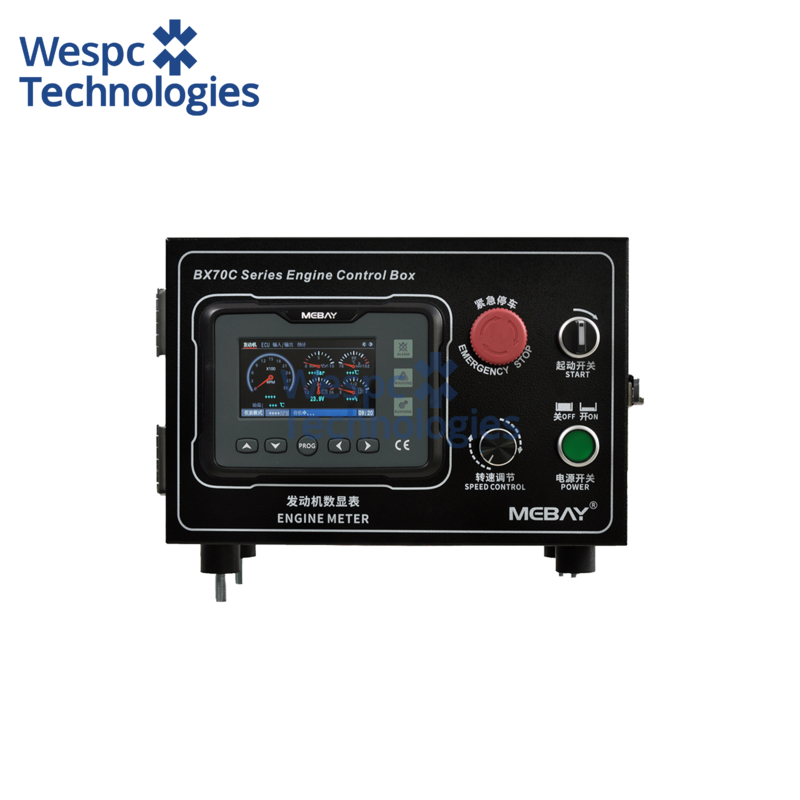

WESPC Original BX70C Mebay Diesel EFI Engine Generator Control Panel
|
Power supply |
DC 8～36 V |
| Consumption power: | MAX:3 W |
| Alarm output: | MAX DC5A |
| Operation Temperature: | -22～65℃ |
| Storage Temperature: | -40～85℃； |
| Ingress protection: | IP54 (the front face) |
| Size (W * H * D): | 210mm * 270mm * 21mm |
| Weight: | 5.8Kg |
Summary
BX70C is a complete set of control box using GM70C diesel engine multifunctional instrument independently developed by our company. For EFI engine, read engine related parameters through ECU and display alarm fault code. The control box adopts 1.5mm plate, national standard flame retardant cable and CHINT brand switch button, which has the advantages of exquisite workmanship, reliable quality and comprehensive functions.
Main Features
4.3-inch large screen color LCD
Read engine parameters through can interface
All parameters can be set through the panel keys
With speed control function
Multiple alarm protection functions
Silicone panel, waterproof and oil proof
Waterproof plug output
Parameters Display
engine RPM
engine oil pressure
engine water temperature
engine oil temperature
engine fuel level
engine battery voltage
ECU related parameters
4 switches input status display
Output status display of 3 relays
Cumulative number of startups
Total number of alarms
Total Crank times
Current running time
Total running time
Maintenance notice
