| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A129 |

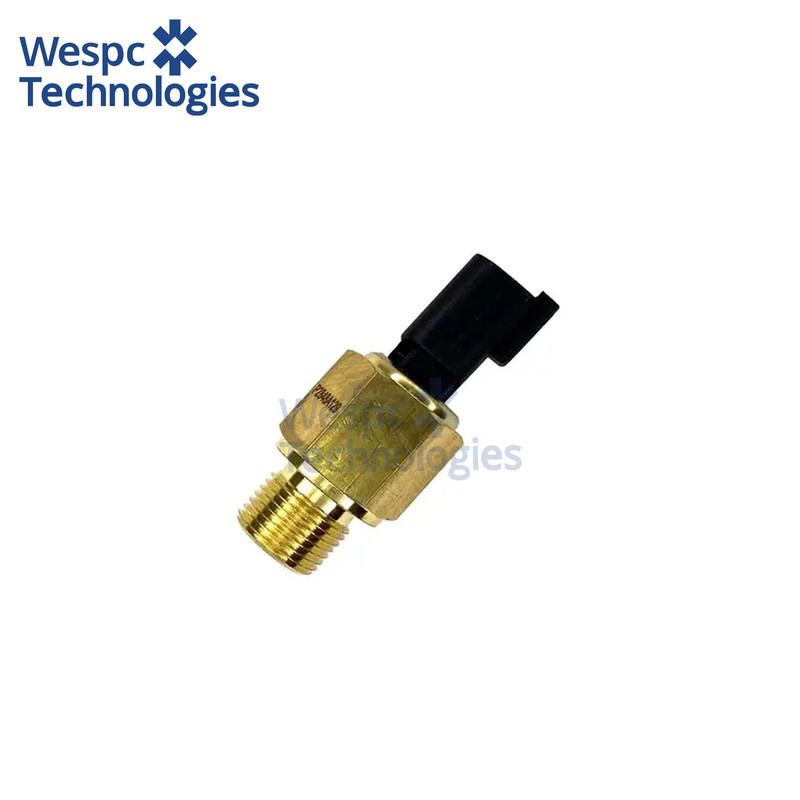

WESPC Water Temperature Sensor 2848A129 For Perkins 1104D-44 1104D-44T 1104D-44TA
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A129 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M14 × 1.5 parallel with 19 mm hex and 18 mm probe reach for direct insertion into the cylinder-head coolant gallery. Sensing range –40 °C to +140 °C via a precision NTC thermistor calibrated 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %.
Material & performance features:
Probe body is precision-machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life organic-acid coolants and galvanic corrosion; a copper crush-washer and fluorosilicone O-ring ensure leak-free sealing up to 3 bar system pressure. Electronics are fully encapsulated in high-temperature epoxy potting compound, thermal-shock-tested 1 000 cycles –40 °C↔+150 °C, salt-spray-tested 96 h per ASTM B117, EMI-suppressed circuitry compliant with SAE J1113-42 for reliable ECU feedback, MTBF > 500 000 engine hours.
Interchange part numbers:
2848A129, 10000-59836, 4224844M1, 4222211M1, 2755A023.
