| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1840078C1 |

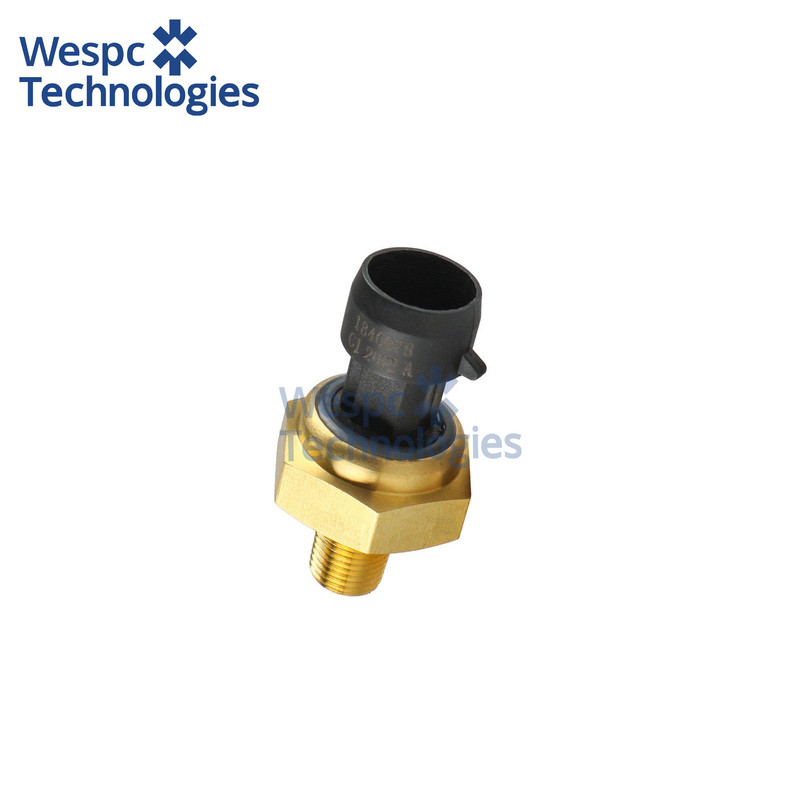

WESPC Oil Pressure Sensor 1840078C1 For Navistar DT466E DT530E I530E
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1840078C1 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Oil Pressure Sensor 1840078C1 is a heavy-duty engine-oil pressure sender developed for International / Navistar DT466E, DT530E, I530E, DT466 7.3 L turbo-diesel engines. These power units are widely used in Massey Ferguson 8100 series high-horsepower tractors, large-capacity combine harvesters, 150-350 kVA generator sets, plus Class-6/7 delivery trucks, school buses and vocational machines operating in both agricultural and on-highway environments worldwide.
Technical specifications:
Thread interface 1/8-27 NPT male with 19 mm hex and 12 mm probe reach for direct installation into the high-pressure oil rail. Operating pressure range 0–70 bar (0–1 015 psi), output signal 0.5–4.5 Vdc ratiometric across the scale, supply voltage 5 ± 0.25 Vdc, accuracy ±1.5 % F.S. Electrical connection is a sealed 3-pin Packard Metri-Pack 150.2 connector, IP67 rated, overall sensor length 45 mm, weight 110 g.
Material & performance features:
Housing is precision-turned from brass alloy and nickel-plated for total immunity to engine oil, diesel fuel and road salt; the sensing capsule is a laser-welded 1.4571 (AISI 316Ti) stainless-steel diaphragm with thin-film strain gauges for excellent long-term stability.
Interchange part numbers:
1840078C1, 1840078C2, 10000-18400, 4224849M1, 4222216M1, 2755A030.
