| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | 26420472 |

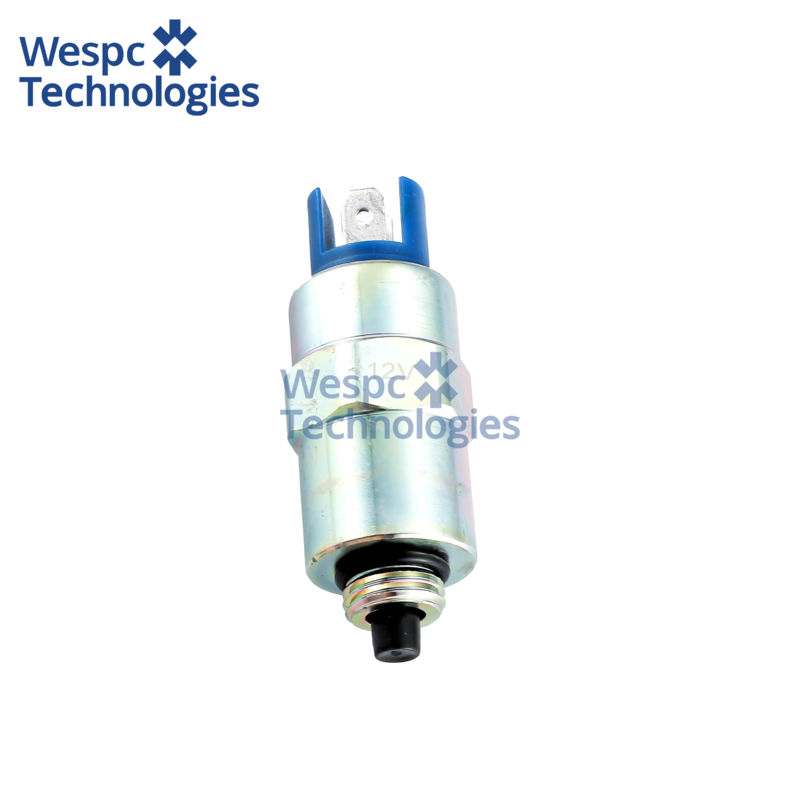

WESPC 26420472 Fuel Pump Stop Solenoid 12V for Perkins Diesel Engines
| Size | 10*10*10mm |
| Weight | 0.32kg |
| Model Number | 26420472 |
| Brand Name | WESPC |
| After-sales Service Provided | Video Technical Support,Online Support |
| Markrting Type | Ordinary Product |
| Warranty | 1 year |
| Stock | Yes |
Application:
This solenoid valve is used in diesel engine systems to control fuel injection shutdown. It is suitable for industrial and agricultural machinery requiring precise fuel cut-off during engine stop procedures. The product is designed to ensure safe and reliable operation in environments where fuel system integrity is critical.
Generator sets:
Commonly installed in mid-range diesel generator sets powered by Perkins engines. It supports fuel pump control in standby and prime power units, contributing to efficient engine management and shutdown safety.
Technical specifications:
WESPC 26420472 operates at 12V DC and is built with a high-strength alloy housing and copper coil assembly. It features a standard 2-pin connector and threaded mounting interface. The solenoid is engineered for direct integration with fuel injection pumps, offering stable performance under variable load conditions. Product quality complies with CE, RoHS, and ISO9001 standards.
Function:
The solenoid valve interrupts fuel flow to the injection pump when de-energized, effectively stopping engine operation. It prevents fuel leakage and ensures controlled shutdown in case of system failure. When energized, it allows fuel delivery for normal engine function.
Compatible engines:
Perkins 3.1524, 903.27, 1004-4, 1004-4T, 1004-40, 1004-40T, 1004-42
