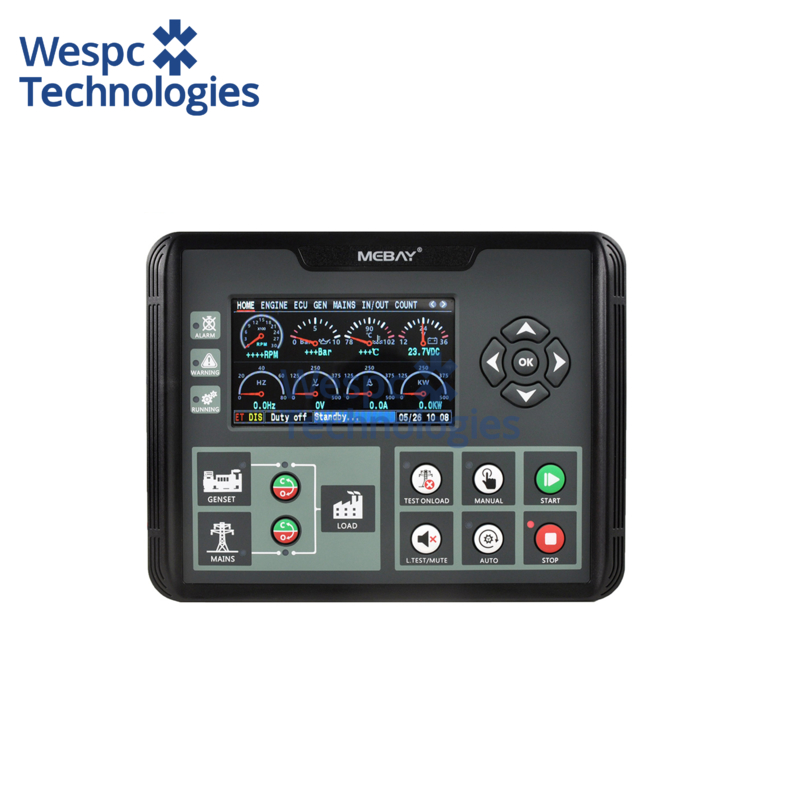

WESPC Original DC72MR Low Temperature AMF Genset Controller Control Module
|
Operation Voltage |
DC8V---36V Continuous |
| Rotate speed sensor Frequency | 50-10000Hz |
| Working condition | -40-70℃ |
| Storage condition | -40-80℃ |
| MAX Accumulating Time | 99999.9Hours(Min Store time:6min) |
| Overall dimension | 210mm*160mm*50mm |
| Panel cutout | 186mm*142mm |
| Weight: |
0.9Kg |
Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB or ETHERNET interface to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Main Features
There are four Models under DC7xMR series.
DC70MR: used for single machine automation. Start/Stop through remote start signal.
DC72MR: Based on DC70MR , it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
Dual core 32bit high performance single chip microcomputer.
4.3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary.
Wide temperature working range (-40-70℃), suitable for harsh working environment.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USB port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
The standard ETHERNET communication interface can be connected to the GSCLOUD generator cloud control platform, and the status of the generator set can be monitored remotely through the WEB platform and mobile APP; the ETHERNET interface supports the Modbus-RTU protocol, and the controller parameters can be set through the PC;
Standard CAN communication port, built-in J1939 protocol, has matched more than 40 kinds of engines;
Various kinds of parameters display.
Input/output function, status can be shown directly.
More categories of surface setting.
Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
Protection countdown function, which can set the maintenance time or date.
Totally 6 relay’s output, among which 4relay output can be self-configurable, each relay can be set as max 20 functions, besides, there are 3 groups as non-contact terminals.
With 5 switches input, up to 20 functions optional;
3 sensor simulation input connectors, the oil pressure sensor is compatible with voltage and current signal input, and various display units can be configured.
Battery charging control function,which can protect the battery according to battery voltage status.
Sensor can be self-defined by front face button or PC software.
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP54
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
