WESPC Original GM41H Multi-functional Engine Generator Meter with Maintenance

WESPC Original GM41H  Multi-functional Engine Generator Meter with Maintenance

Summary

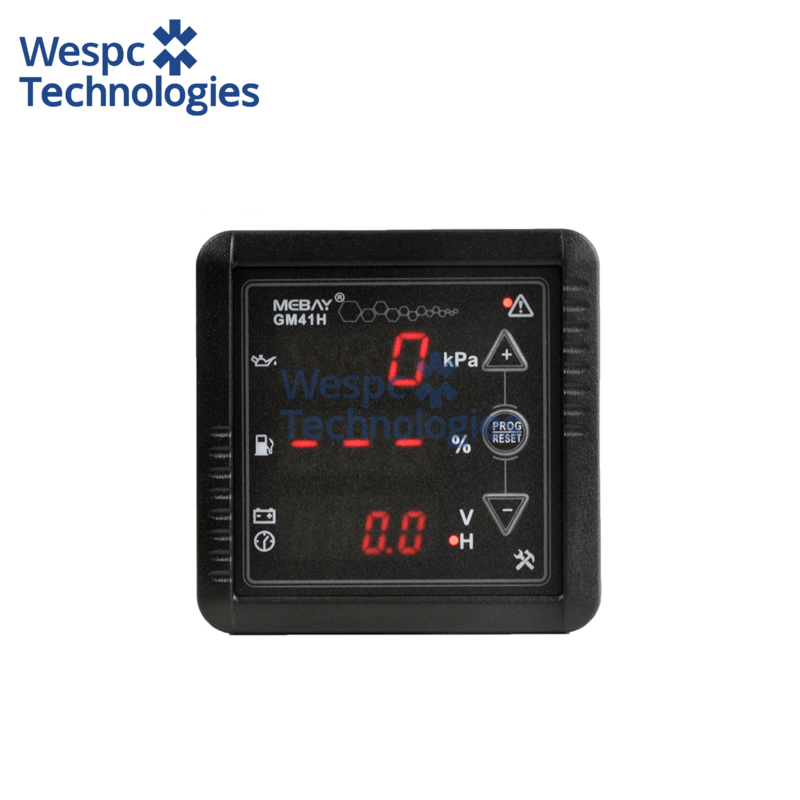

  GM41H is a lightweight and cost-effective instrument, which is used to measure and display engine oil pressure, fuel level, battery voltage and accumulated running time of engine.

  The instrument adopts high brightness LED digital display tube, which is durable. The parameters can be adjusted and set by pressing the key to meet the requirements of different applications. In addition, European terminal connection is adopted to facilitate the installation, removal and replacement of modules.

Main Features

  It is controlled by 32-bit high performance single chip microcomputer;

  The measured value is displayed by 3 screens and 4 high brightness digital tube;

  A variety of built-in sensor curves can be selected, and the sensor parameter curve can be customized;

  With maintenance prompt function, three kinds of maintenance countdown can be set, and the first maintenance and routine maintenance can be distinguished;

  It has two sensor analog inputs, among which the oil pressure sensor is compatible with voltage signal input;

  All parameters can be modified through panel buttons;

  It is equipped with standard waterproof ring, and the protection performance of the panel reaches IP54 after installation;

  The modular design: all wiring is completed through European terminals, so the assembly, wiring, maintenance and replacement of the equipment are very easy and convenient;

Parameters Display

  Engine oil pressure

  Engine fuel level

  Engine battery voltage

  Total running time

Protection

  Low oil pressure

  Sensor open

  Maintenance expire

  Low fuel level warning

  Battery under voltage warning
