| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GM50W |

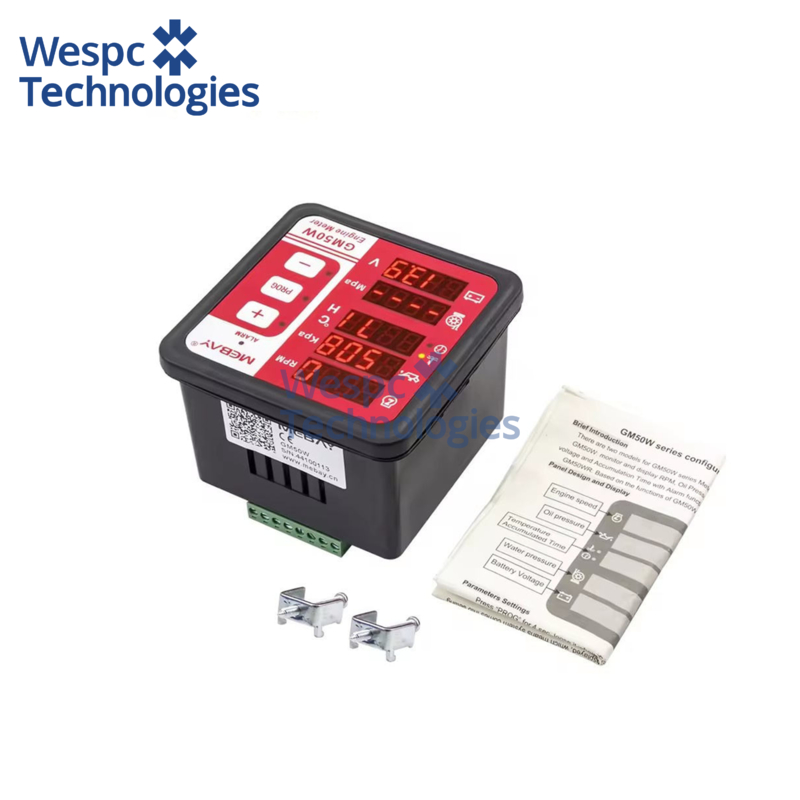

WESPC Original GM50W Generator Set Controller Diesel Control Digital Meter
|
Operation Voltage |
DC 8～36 V |
| Consumption power | MAX:1.5 W |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| Sensor Resistance | 0～1000 Ohm |
| Overall dimension | 100mm*100mm*77mm； |
| Panel cutout | 116mm*90mm |
| Weight: | 0.6Kg |
Summary
GM50W is one light and low price-orientated module used for demonstrating engine RPM,water temperature, water pump pressure,oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.
There are 2 Models under GM50W series.
GM50W:The engine parameters gathered through the resistant type sensors, protection alarm, value set by front face buttons.
GM50WR:Based on GM50W functions, RS485 port is added, parameters can be monitored and set directly through PC.
Features
Various kinds of protections
Variety of sensor curves' parameters is set inside
Sensor curve can be self-defined by buttons
High-light digital tube can demonstrate the parameters
English and symbols demonstration
The parameters can be set and adjusted by the button on the front face.
Parameters Display
Engine RPM
Engine Oil Pressure
Water Pump Pressure
Engine Cooling Water Temperature
Battery Voltage
Accumulation Time.
Protections
Over speed
Low Oil Pressure
High Oil Temperature
Low Water Pump Pressure
High Water Temperature
Low Battery Voltage
Range and Accuracy
RPM Accuracy:deviation≦±1%(during preset Range)；
Oil Pressure Accuracy:0-1000Kpa, deviation≦±2.5%；
Water Temperature Accuracy:20-120℃, deviation≦±2.5%；
Water Pump Pressure Accuracy:0-10Mpa, deviation≦±2.5%；
Battery voltage Accuracy:deviation≦±1%(during preset Range)；
Accumulation Time :0-999999Hours(min record time: 0.1H)；
