| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV05 |

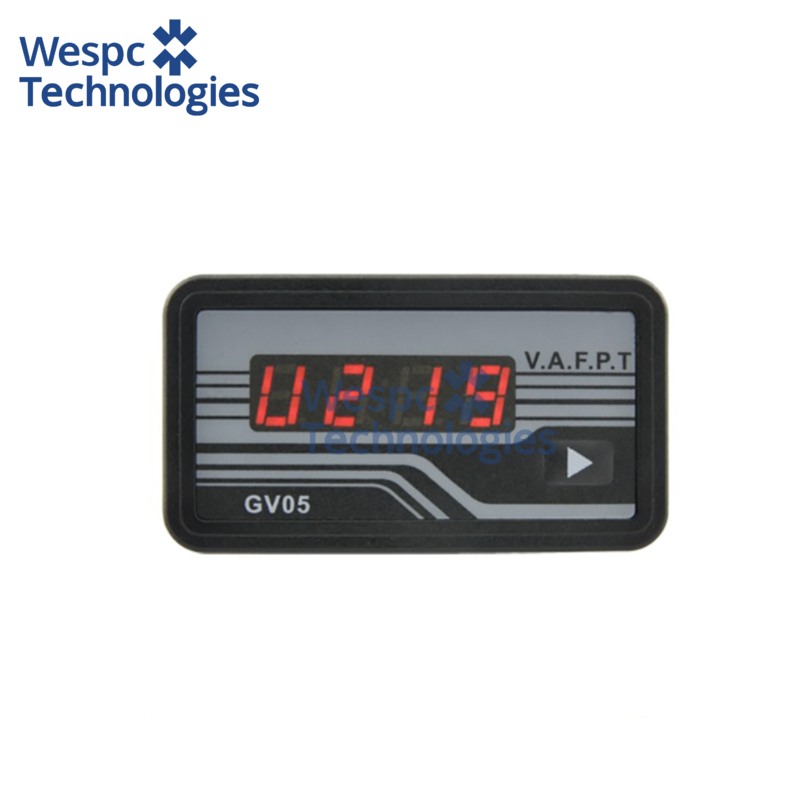

WESPC Original GV05 Digital Generator Meter Voltage Frequency Power Monitoring
| Power Supply | AC165～275V/ AC280～450V |
| Consuming power | MAX:1 W |
| Temperature | -40℃ ～ 75℃ |
| Size (W * H * D) | 60mm * 33mm * 51mm |
| Installation Size(W * H) | 51mm * 26mm |
| Weight | 50g |
Summary
GV05 is one light and low price-orientated module used for checking and demonstrating voltage, current,power,frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.
Features
Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
Results shown by 4-position digital LED tube
Self-recycling of parameters
With Page Turning Buttons
Extra working power is not needed
Parameter demonstration
Phase voltage
Current
Power
Frequency
Run time
Accumulating time
Range and accuracy
AC voltage:Phase voltage AC165-260V,Line voltage AC300-450V；Deviation≦±1%
Current: 0～30A/0～50A/0～90A,deviation≦±2%
Power:0~6Kw/0-10Kw/0-18Kw,deviation≦±2%
Frequency:45-70HZ,deviation≦±0.5%
Accumulated time:0-9999hours (min:0.1hours),deviation≦±1%.
