| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC30C |

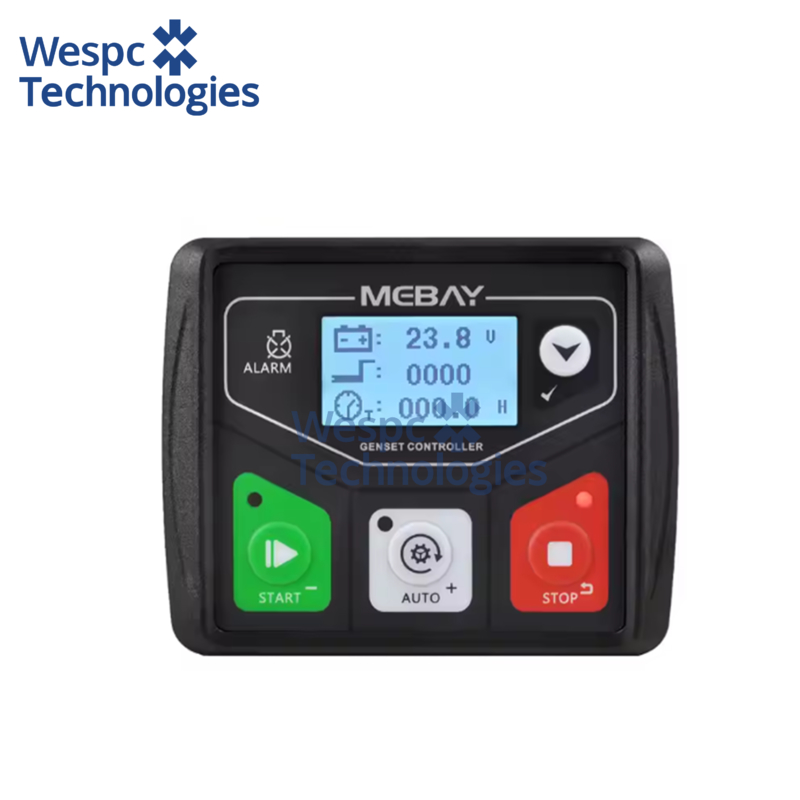

WESPC Original DC30C Generator Controller Diesel Gasoline Genset Controller
|
Operation Voltage |
DC8-36V Continuous |
| Switch value input | Connected to battery negative pole effective |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| AC Voltage Input | 1P2W(L-N input) 30VAC-360VAC(ph-N) |
| Overall dimension | 106mm×86mm×45mm |
| Panel cutout | 78mm×66mm |
| Weight: | 0.25Kg |
Summary
This series of controller is specially designed for the start, stop, parameter monitoring and fault monitoring of EFI diesel, gasoline and gas generator sets, and has parameter setting function.
The controller has a point array LCD screen, can display various faults in the same time that the Generator set will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of Generator sets.
Main Features
It adopts 32-bit high-performance single-chip microcomputer control;
The dot matrix high-resolution liquid crystal display, with Chinese and English switchable, can be customized according to customer needs;
The key panel of PC material is adopted, which can effectively prevent water, oil and ultraviolet rays, and has good operation feel and long service life;
With USB interface, parameters can be set and real-time monitored through USB interface;
The standard configuration of CAN communication interface, built-in a variety of J1939 protocols;
Collect and display engine speed rpm, oil pressure kPa / psi, temperature ℃ / F, oil level%, battery voltage V, operation time h, cumulative working time h, etc;
Acquisition and display generator frequency Hz, voltage V, current a, power kW, load rate%;
Maintenance countdown and reminder function;
With black box function, it can save the relevant parameters of the unit in case of fault alarm in real time, so as to find out the fault cause of the unit conveniently;
There are 5 relay outputs, 3 of which can be configured;
1-way switch input, function can be configured, nearly 10 functions can be selected;
There are 2 analog input channels with configurable function, which can be selected as sensor input or switch input;
A variety of starting conditions (speed, frequency, oil pressure) combination can be selected;
The standard waterproof ring is equipped, and the protection performance of the panel after installation reaches IP54 level;
Modular design: all wiring is completed through European terminals, so it is very easy and convenient to assemble, connect, repair and replace the equipment;
