| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC32D |

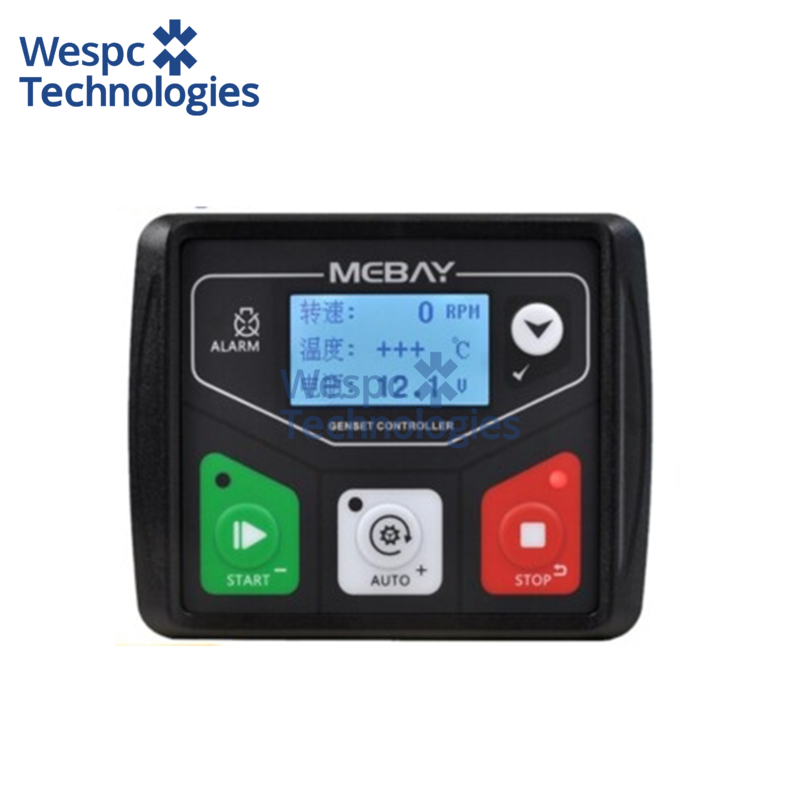

WESPC Original DC32D Diesel Generator Controller Control Panel Module Unit
|
Operation Voltage |
DC8-36V Continuous |
| Rotate speed sensor Frequency | 50-9000Hz |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| Generator Frequency input | 50/60Hz |
| Overall dimension | 106mm×86mm×45mm |
| Panel cutout | 78mm×66mm |
| Weight: | 0.25Kg |
Summary
This Controller Series is specialized for small diesel, gasoline, gas generator sets, start, stop,monitor and defaults checking as well as parameters setting.
This controller has manual start, stop, and AMF functions.It has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
The controller has built-in simplified Chinese, traditional Chinese, English, Spanish, Russian, Türkiye, French and other display interfaces for selection, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Main Features
32 units Micro-procession technology is used.
1.8 inches 128*64 LCD display with backlight, option language interface , user’s language set if necessary.
PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer.
It has AMF function, which can monitor the status of mains electricity and power generation, and automatically control the ATS conversion switch;
USB Port: parameters can be set even without power.
All the parameters can be set through front panel buttons.
Collect and display a variety of engine and generator parameters.
Records function: relative faults shall be recorded in real time.
It has 5 relay outputs, 1 of which are configurable, and more than 10 functions can be selected for each channel.
2 switch value input, and each can be set as max 10 functions.
2 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank conditions(RPM,Frequency) can be chosen
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP65.
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
