| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3142W005 |

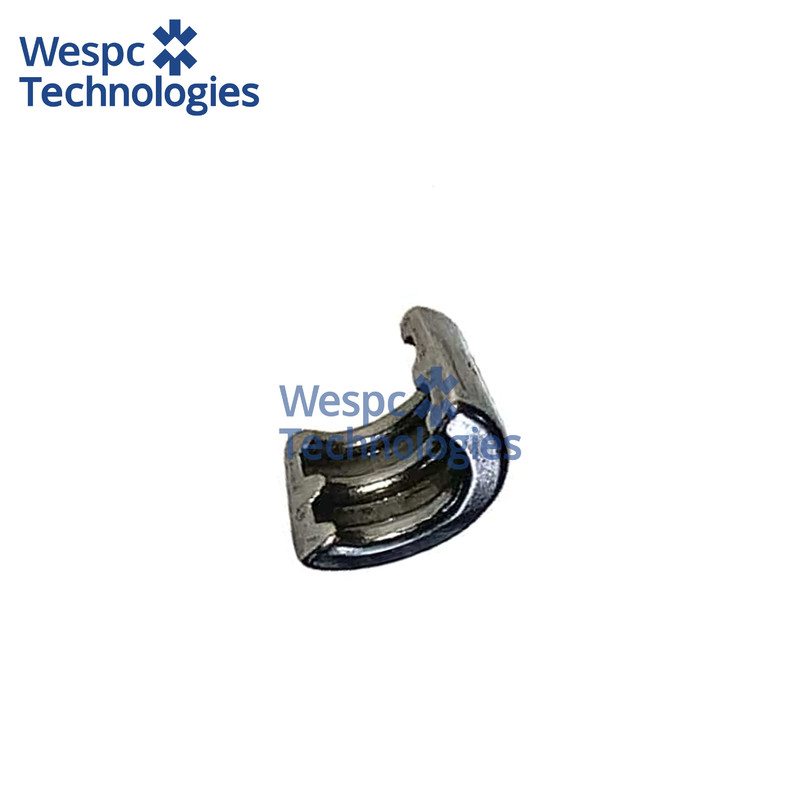

WESPC Valve Cotter 3142W005 For Perkins 1103 1104 Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142W005 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
3142W005 is a hardened-steel split cotter that locks the inlet and exhaust valves of 3- and 4-cylinder Perkins 1103/1104 diesels (3.3–4.4 L) into their spring retainers on JCB 3CX back-hoes, MF 1700 tractors and 45 kVA “Vista A” generator sets. It is also used in Caterpillar C6.6 and 1106C-E60TAG4 builds, where it must survive 30 g valve-train acceleration at 3 000 min⁻¹ without spreading or fretting, guaranteeing 12 000 h of service before overhaul.
Technical specifications:
Overall length 24 mm, stem groove width 2.0 mm, taper 8 ° included angle, material 20CrMnTi case-hardened to 58 HRC with 0.3 mm case depth. Surface is phosphate-coated 3 µm for 96 h corrosion resistance and then lightly oiled for assembly.
Material & performance features:
The 20CrMnTi alloy (0.20 % C, 1.0 % Cr, 0.8 % Mn, 0.04 % Ti) offers 1 100 MPa tensile strength and 12 % elongation, resisting impact fatigue when the cam lifts 9 mm. Controlled taper gives uniform radial load on the valve stem, reducing groove wear to <0.02 mm after 6 000 h. Phosphate layer retains oil during cold starts, cutting initial scuffing by 30 %, while the 8 ° angle keeps self-locking even if spring preload reaches 550 N.
Interchange part numbers:
PERKINS 3142W005, 3142W006, 3142W007, CATERPILLAR 3142W005, C6.6 3142W005, KMP 3142W005, FPS VC3142W005, ITM VOE3142W005, FAI VC3142W005, AJUSA 8103142W005, GLYCO VC-Per 1103/1104, MAHLE VC-3142W005, AE 3142W005, CLEVITE VC-3142W005, TOPLINE 3142W005, VMC 3142W005, MARINE D’USTRIE 3142W005, KINGSLAND 3142W005, AIC 3142W005, WDPART 3142W005.
