| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T407116 |

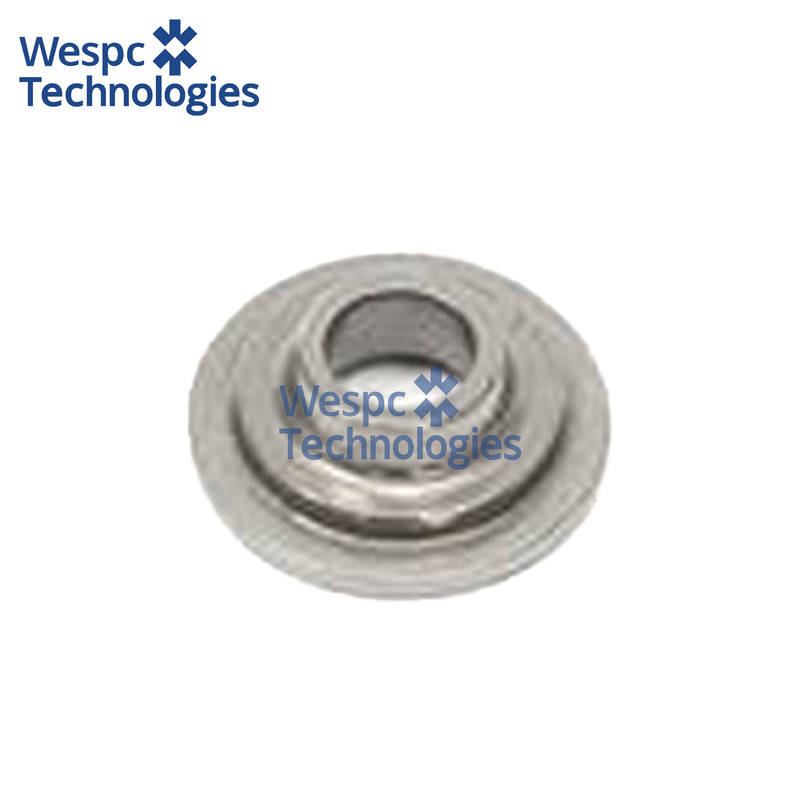

WESPC Valve Spring T407116 For Perkins 1106D-70TA 1106D-E66TA Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T407116 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
T407116 is the outer (and often inner) valve spring fitted around both inlet and exhaust valves on 6-cylinder Perkins 1106D-70TA, 1106D-E66TA and Caterpillar C7.1 / 320D2 engines. It maintains correct valve motion up to 2 200 min⁻¹ in 70 kW – 130 kW applications such as CAT 320D2 excavators, JCB JS130 tracked carriers, 100 kVA “Vista A” generator sets and Claas Lexion combine harvesters while meeting EU Stage IIIA / EPA Tier 3 emission limits.
Technical specifications:
Free length 52 mm, outer diameter 32 mm, wire diameter 3.8 mm, 6.5 active coils, solid length 30 mm. Material is chrome-vanadium spring steel (50CrV4) oil-quenched and tempered to 47 HRC, then shot-peened to 0.30 mm A-intensity to raise fatigue life to 1 × 10⁷ cycles.
Material & performance features:
The 50CrV4 alloy (0.5 % C, 1 % Cr, 0.15 % V) offers 1 600 MPa tensile strength and 8 % elongation, resisting surge-set when exhaust temperature reaches 750 °C. Controlled shot-peening induces 450 MPa compressive stress on the outer surface, delaying fatigue crack initiation and extending service life to 12 000 h.
Interchange part numbers:
PERKINS T407116, 3174A015, 3174A014, AGCO 4227429M2, 4226319M2, KMP T407116, FPS VS-T407116, ITM VOET407116, FAI VS-T407116, AJUSA 810T407116, GLYCO VS-Per 1106, MAHLE VS-T407116, AE T407116, CLEVITE VS-T407116, TOPLINE T407116, VMC T407116, MARINE D’USTRIE T407116, KINGSLAND T407116, AIC T407116, WDPART T407116.
