| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T417881 |

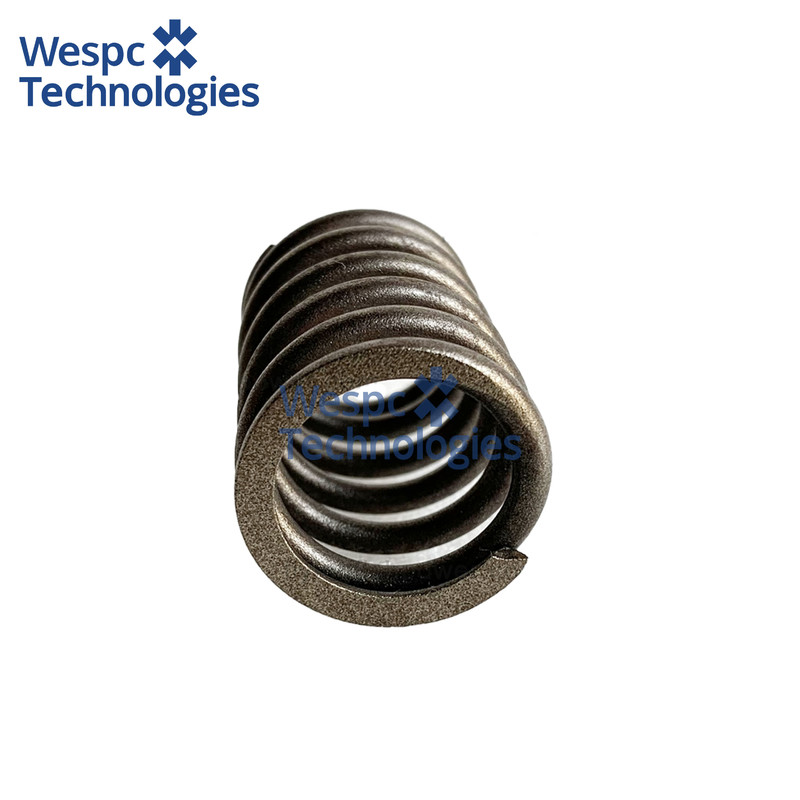

WESPC Valve Spring T417881 For Perkins 1106A E70TAG 1106D-70TA Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T417881 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
T417881 is the outer (and often inner) valve spring fitted around both inlet and exhaust valves on 6-cylinder Perkins 1106A/E70TAG and 1106D-70TA diesels (7.0 L) used in JCB JS130/JS145 excavators, CAT 320D2 tracked carriers, 100 kVA “Vista A” generator sets, Claas Lexion combines and marine auxiliaries. It maintains correct valve motion up to 2 200 min⁻¹ while meeting EU Stage IIIA / EPA Tier 3 emission limits.
Technical specifications:
Free length 52 mm, outer diameter 32 mm, wire diameter 3.8 mm, 6.5 active coils, solid length 30 mm. Material is chrome-vanadium spring steel (50CrV4) oil-quenched and tempered to 47 HRC, then shot-peened to 0.30 mm A-intensity to raise fatigue life to 1 × 10⁷ cycles.
Material & performance features:
The 50CrV4 alloy (0.5 % C, 1 % Cr, 0.15 % V) offers 1 600 MPa tensile strength and 8 % elongation, resisting surge-set when exhaust temperature reaches 750 °C. Controlled shot-peening induces 450 MPa compressive stress on the outer surface, delaying fatigue crack initiation and extending service life to 12 000 h.
Interchange part numbers:
PERKINS T417881, 3174A015, 3174A014, AGCO 4227429M2, 4226319M2, KMP T417881, FPS VS-T417881, ITM VOET417881, FAI VS-T417881, AJUSA 810T417881, GLYCO VS-Per 1106, MAHLE VS-T417881, AE T417881, CLEVITE VS-T417881, TOPLINE T417881, VMC T417881, MARINE D’USTRIE T417881, KINGSLAND T417881, AIC T417881, WDPART T417881.
