| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC110D |

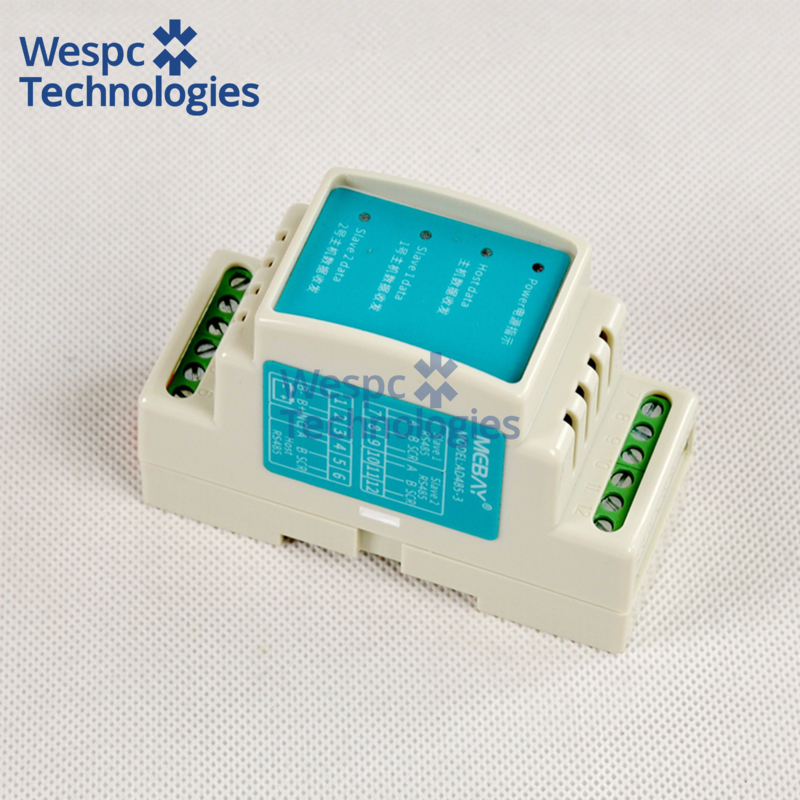

WESPC Original AD485-3 Generator Parts Extension Module Interface Facilitates
|
Working voltage |
DC 8V----36V Continuous |
| Power consumptionWorking:MAX 1W (Standby:MAX 0.5W) | |
| Working condition | -40-70℃ |
| Storage condition | -40-80℃ |
| Overall dimension | 88mm*37mm*63mm |
| Panel cutout | 0.15Kg |
Summary
AD485-3 is the expansion module of RS485 interface, which has 3 interfaces, namely RS485 host interface, RS485 slave 1 interface, RS485 slave 2 interface. It can convert 1# RS485 interface to 2# RS485 interface, providing convenience for customers to monitor and collect data via Modbus-RTU protocol.
Main Features
Dual core 32bit high performance single chip microcomputer.
With three RS485 interfaces;
35mm guide rail installation method;
DC(8~36)V continuous power supply;
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
