| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 31434163 |

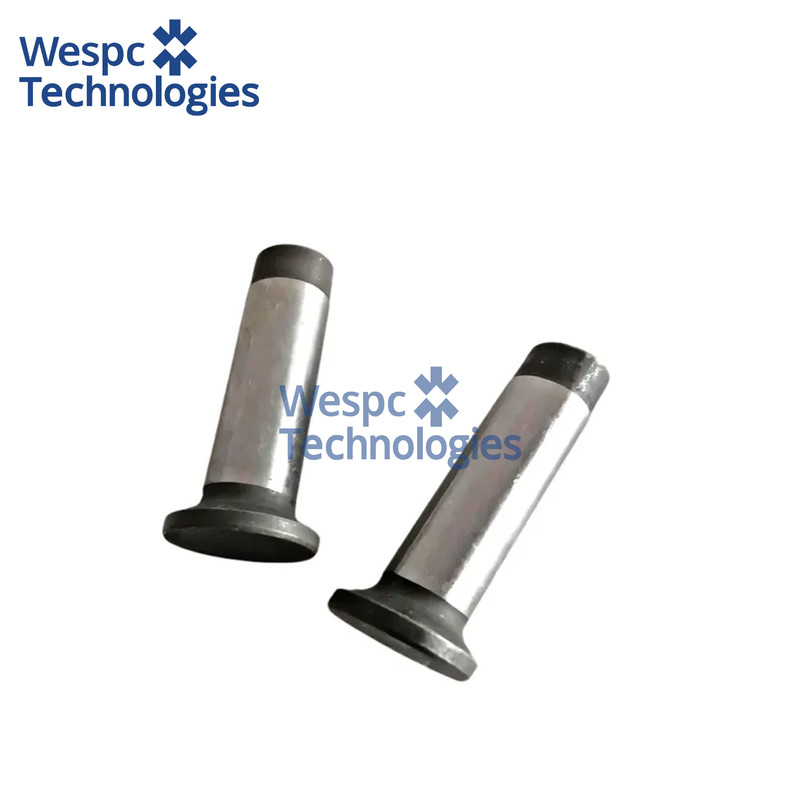

WESPC Valve Tappet 31434163 For Perkins 1004C-44T E44T 4.236 4.248 6.354 Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
31434163 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
31434163 is a precision-machined hydraulic valve tappet for Perkins 1004C-44T/E44T, 4.236, 4.248, 6.354 and Caterpillar C7.1 diesels. It is also used in MF 290, 390, 399, 570, 590, 670, 690 tractors, JCB 3CX/4CX back-hoe loaders and Claas combine harvesters. The tappet locates between the camshaft lobe and the push-rod, converting rotary cam motion into linear valve actuation while maintaining zero-lash throughout the 12 000 h overhaul interval.
Technical specifications:
Overall length 30 mm, head diameter 22 mm, stem diameter 12 mm, cam-contact face radius 600 mm, mass 168 g. Body is drop-forged from 20CrMo steel (0.20 % C, 1 % Cr, 0.20 % Mo), through-hardened to 58 HRC at the crown and 45 HRC on the stem to resist brinelling under 12 kN spring load. Crown surface is phosphate-coated 5 µm to assist initial running-in, then flash-oiled for corrosion-free storage.
Material & performance features:
The 20CrMo alloy offers 900 MPa tensile strength and 12 % elongation, resisting impact fatigue when the cam lifts 9 mm at 30 g acceleration. Induction-hardened crown depth is 2.0 mm, delaying pitting beyond 8 000 h even when sulphated ash fuel is used.
Interchange part numbers:
PERKINS 31434163, T420076, 4646253, 3142U031, 31434161, 31434162, 31434165, AGCO 4222069M1, 740671M, VAPORMATIC VPA2603, KMP 31434163, FPS VT-31434163, ITM VOE31434163, FAI VT-31434163, AJUSA 81031434163, GLYCO VT-Per 4.236, MAHLE VT-31434163, AE 31434163, CLEVITE VT-31434163, TOPLINE 31434163, VMC 31434163, MARINE D’USTRIE 31434163, KINGSLAND 31434163, AIC 31434163, WDPART 31434163.
