| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC10KE |

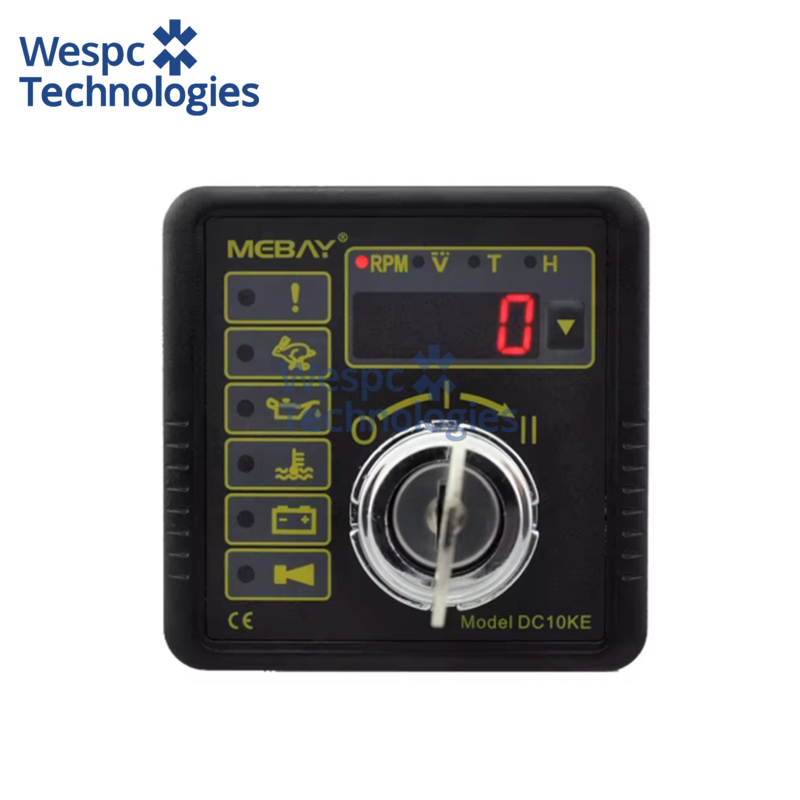

WESPC Original DC10KE Diesel Engine Controller Manual Engine Control Module
|
Power supply |
8-33VDC |
| Power consumption | MAX 2W(Working) |
| Operating temperature | -30-75℃ |
| Storage temperature | -40-85℃ |
| Alarm output | MAX 16A |
| Overall dimension | 78×78×72mm |
| Panel cutout | 67×67mm |
| Weight: | 280g |
Summary
Controller DC10KE is designed as one of the engine manual start controller.
The engine speed, battery voltage, current running time and accumulation time can be displayed through the front face LED screen. This controller is also with various kinds of stop and alarm indications to monitor the engine status. Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different engines.
Main Features
32 units Micro-procession technology is used.
4 Units LED tube Display
LED and Fault Alarm Code Indication
The parameters can be set through Computer
Application for various kinds of Engine by self-setting
With RS485 communication port
