| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV13T |

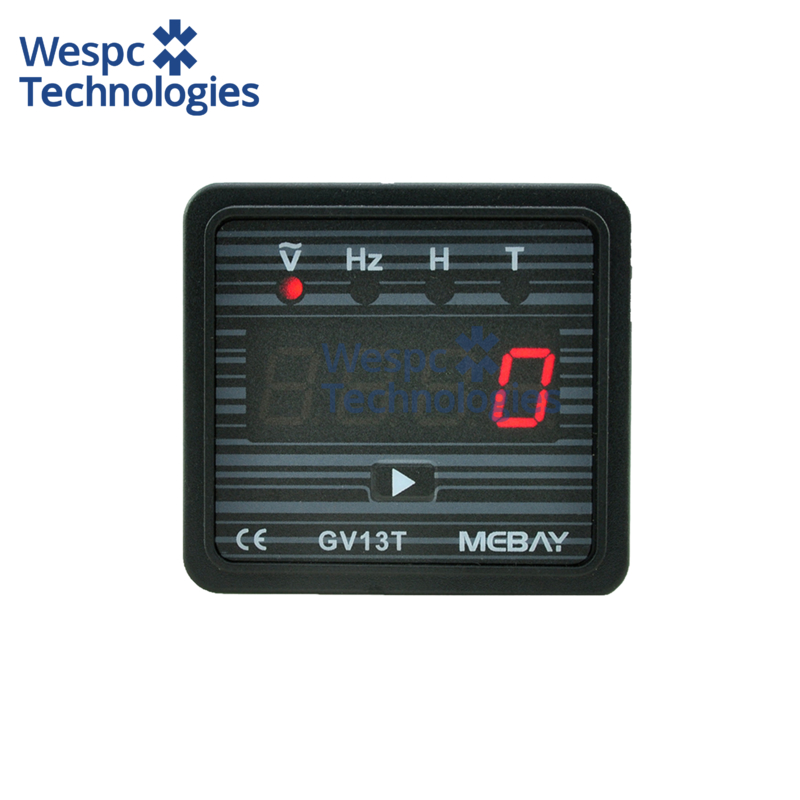

WESPC Original GV13T Generator Digital Voltmeter Frequency Hour Test Panel Meter
| Working power supply | AC185 ～ 265V (220 VAC system) |
| Power consumption | MAX:1 W |
| Temperature | -30℃ ～ 70℃ |
| Cumulative operation time | 0-9999h |
| Current running time | 0-999.9h |
| Size (W * H * D) | 58mm * 54mm * 41mm |
| Installation Size(W * H) | 47mm * 37mm |
| Weight | 55G |
Summary
GV13T is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.
Features
Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
Results shown by 4-position digital LED tube
Self-recycling of parameters
No additional working power supply is required;
110V, 220V, 380V AC system is optional.
Parameter demonstration
Phase voltage
Frequency
Cumulative running time
Current run time
