| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV24 MKII |

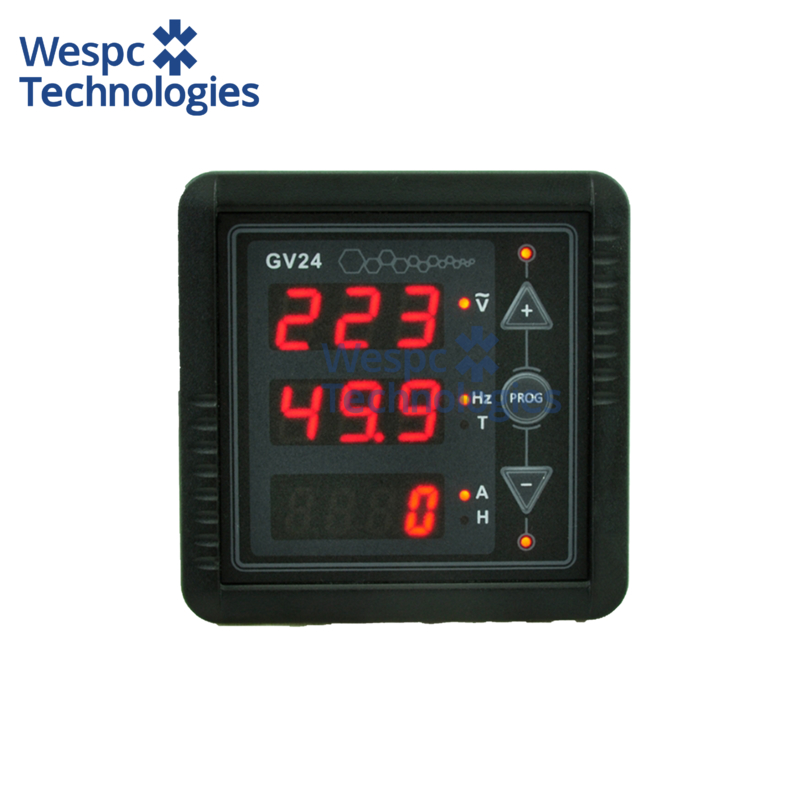

WESPC Original GV24 MKII Diesel Generator Meter LED Display Frequency Meter
| Power | 110V,220V system:AC85～265V,50/60Hz |
| Power | 380V system:AC360～440V,50Hz |
|
Consumption |
MAX 1W |
| Operation temperature | -20℃～65℃ |
| Size(W * H * D) | 78mm*78mm*63mm |
| Cutout(W * H) | 67mm*67mm |
| Protection level | IP54 (the front face after installation) |
| Weight | 200G |
Summary
GV24 MKII is one updated version of GV24 meter for checking and displaying AC Voltage, Frequency, Current, Power, Power Factor and running time with light weight and low cost.It can replace traditional mechanical meter by digital display.
Features
IP54 protection level;
Voltage, Frequency,Current checking and display
3-blanks LED Tube Display
CT Ratio can be set
Parameters display
AC Voltage V
Frequency Hz
Current A
Current working time
Total Running time H
