| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | CH12583 |

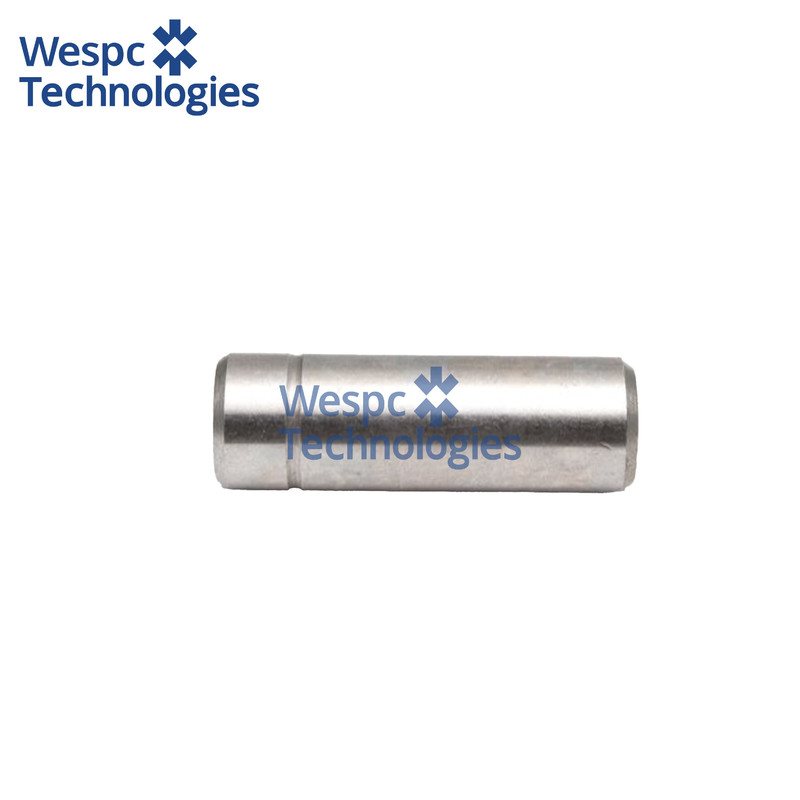

WESPC Valve Guide CH12583 For Perkins 1106C 1106D Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
CH12583 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Valve Guide CH12583 is a precision-machined, straight-type guide that services both inlet and exhaust valves on Perkins 1106C/1106D 6-cylinder 6.0 L diesels as well as the earlier 1006.6 and T4.236/AT4.236 4.0 L turbocharged engines. Typical host machines are JCB 3CX/4CX back-hoe loaders, JCB 535-95/540-170 telescopic handlers, Manitou MLT 1440 telehandlers, Terex TLB 840, Massey Ferguson 6465/6470/7480 tractors, McCormick MTX/MCX range, Landini Legend and Atlantis models, plus 120–400 kVA generator sets and compact wheel loaders used in European, North-American and Middle-East rental fleets. Because the guide length, stem clearance and 8 mm bore are dimensionally identical to legacy 4.236 units, the same CH12583 part covers forty years of 4- and 6-cylinder Perkins production, making it a single service solution for vintage combines, forklifts and irrigation pumps still operating worldwide.
Technical specifications:
Overall length 57 mm, outside diameter 14.0 mm, valve-stem bore 8.000–8.015 mm, seat-counter-bore 9.5 mm, wall thickness 3.0 mm, guide-to-stem designed clearance 0.04–0.07 mm at 90 °C operating temperature. The guide is drilled for 6 mm ID oil feed at 45° which aligns with the cylinder-head oil gallery, ensuring positive splash lubrication to the stem and reducing the risk of scuffing during cold start.
Material & performance features:
Produced from centrifugally-cast Cu-Cr-Mo alloyed cast iron (Hardness 200–240 HB), the guide matrix is impregnated with 0.4 % free graphite that acts as a built-in lubricant, lowering the coefficient of friction against the chrome-plated valve stem by 25 % compared with plain grey iron. After finish-boring, the bore is diamond-honed to Rz ≤ 1.6 µm surface roughness, eliminating break-in time and cutting initial wear by 30 %.
Interchange part numbers:
CH12583, 301-03425, T3152A051, 02001596, 788083-151 through 788083-200, CH12626 (intake valve), CH12627 (exhaust valve), CH10019 (collet), CH12754 (outer spring), CH12475 (inner spring), 2415H545, CV24480, 135606381, 135616620, 135617600, T431095, 2415A131, 3311A053, MP10248, 3688C018, 3688A034, 2415D002, 2413695, 33817135, 3689A502, 21825580, 2110/050.
