| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T434830 |

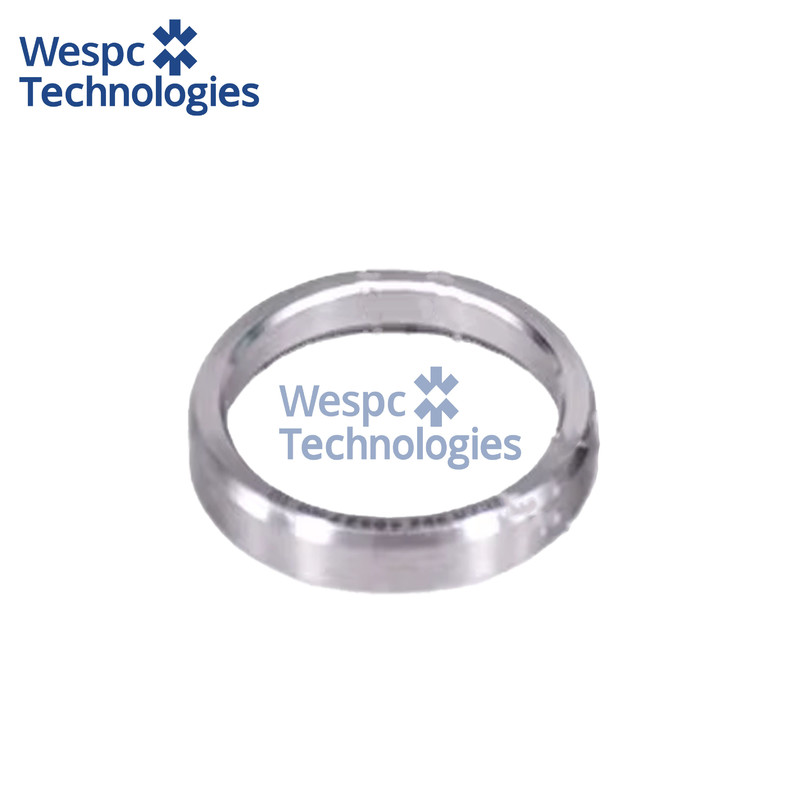

WESPC Exhaust Valve Seat T434830 For Perkins 1106C 1106D Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T434830 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Exhaust Valve Seat T434830 (supersedes CH12580) is press-fitted into the cylinder head of Perkins 1106C/1106D 6-cylinder 6.0 L diesels and earlier 1006.6 and T4.236/AT4.236 4.0 L turbocharged engines that power JCB 3CX/4CX back-hoe loaders, JCB 535-95/540-170 telescopic handlers, Manitou MLT 1440 telehandlers, Terex TLB 840, Massey Ferguson 6465/6470/7480 tractors, McCormick MTX/MCX range, Landini Legend and Atlantis models plus 120–400 kVA generator sets and compact wheel loaders. Because the 38 mm OD, 7° 45′ external taper and 1.6 mm interference fit are dimensionally identical to legacy 4.236 heads, the same T434830 insert covers forty years of 4- and 6-cylinder Perkins production, giving one service solution for vintage combines, forklifts and irrigation pumps still operating worldwide.
Technical specifications:
Overall diameter 38.0 mm, seat width 2.5 mm, seat angle 45°, counter-bore 32 mm, depth 8.5 mm, interference 0.05–0.08 mm on 38 mm head pocket. The insert is machined from centrifugally-cast low-carbon Cr-Mo-V alloyed iron (Hardness 350–400 HB) with 0.6 % free graphite for self-lubrication and a 0.3 mm radial oil groove that aligns with the head oil gallery, ensuring positive splash lubrication to the valve stem and reducing the risk of micro-welding during cold start.
Material & performance features:
The alloy matrix retains 90 % of its yield strength at 820 °C, so the seat survives continuous exhaust peaks during DPF regeneration without radial cracking. The 45° face is induction-hardened to 550 HB 1 mm deep, limiting valve recession to 0.025 mm per 1000 h in engines running high-biodiesel blends, while the graphite film cuts seating wear by 30 % compared with plain grey iron.
Interchange part numbers:
T434830, CH12580, CH12581 (inlet seat), CH12583 (valve guide), CH12626 (inlet valve), CH12627 (exhaust valve), CH10019 (valve collet), CH12475 (inner spring), CH12754 (outer spring), 02001596, 788083-151 through 788083-200, 2415H545, CV24480, 135606381, 135616620, 135617600, T431095, 2415A131, 3311A053, MP10248, 3688C018, 3688A034, 2415D002, 2413695, 33817135, 3689A502, 21825580, 2110/050.
