| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV25 MKII |

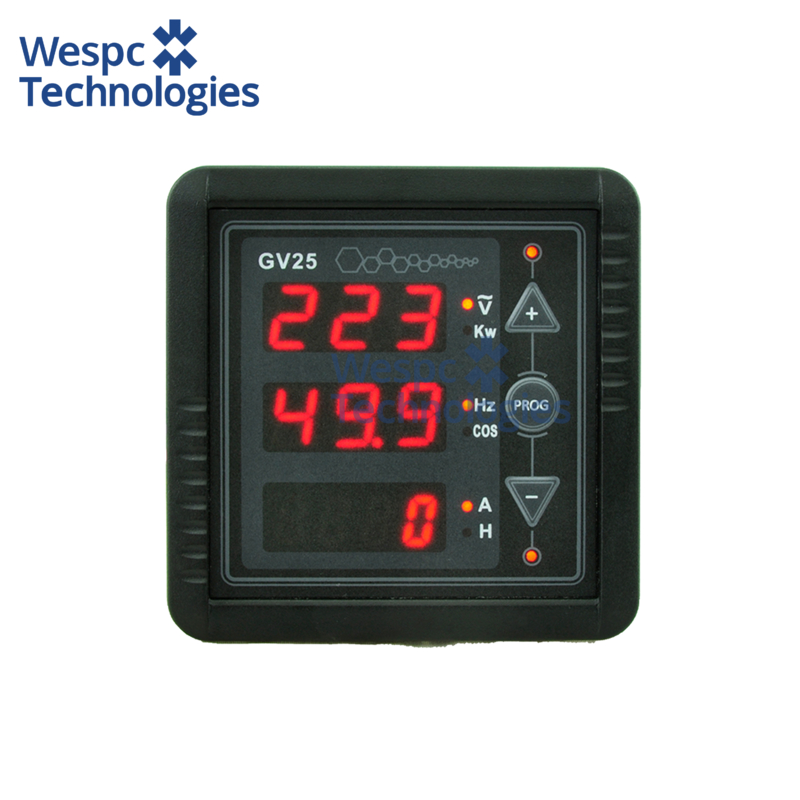

WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel
| Power | 110V,220V system:AC85～265V,50/60Hz |
| Power | 380V system:AC360～440V,50Hz |
|
Consumption |
MAX 1W |
| Operation temperature | -20℃～65℃ |
| Size(W * H * D) | 78mm*78mm*63mm |
| Cutout(W * H) | 67mm*67mm |
| Protection level | IP54 (the front face after installation) |
| Weight | 200G |
Summary
GV25 MKII is one updated version of GV25 meter for checking and displaying AC Voltage, Frequency, Current, Power, Power Factor and running time with light weight and low cost.It can replace traditional mechanical meter by digital display.
Features
IP54 protection level;
Voltage, Frequency,Current checking and display
3-blanks LED Tube Display
CT Ratio can be set
Parameters display
AC Voltage V
Frequency Hz
Current A
Power Kw
Power COS
Total Running time H
Range and accuracy
Voltage:
110V System: AC90～130V,deviation≤±1%；
220V System: AC165～265V,deviation≤±1%；
380V System: AC360-440V, deviation ≤±1%；
Frequency:
50Hz System: 45-60Hz,deviation≤±0.5%；
60Hz System: 55-65Hz,deviation≤±0.5%；
Current:
CT 5A: 5-6000A,deviation ≤±2.5%；
CT 50mA: 1-200A,deviation≤±2.5%；
Power: deviation ≤±3%,within the range；
Power factor: COS:0-1,deviation≤±1%；
Total Running time: 0.0-9999 hours,min record time: 0.1H.
