| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GM50RE |

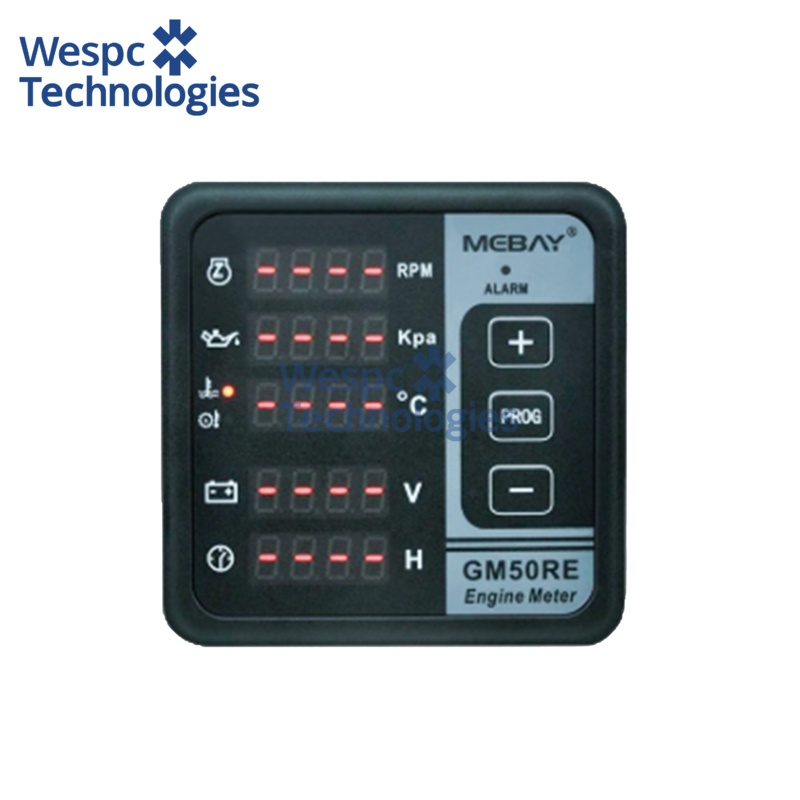

WESPC Original GM50RE Vice Display Generator Engine Meter Monitor RS485 Port
| Power | DC 8～36 V |
| Consumption power | MAX:1.5 W |
|
Operation Temperature |
-25～65℃ |
| Storage Temperature | -40～85℃ |
| Ingress protection | IP54(the front face after installation) |
| Size (W * H * D) | 100mm*100mm*77mm |
| Panel cutout | 91mm*91mm |
| Weight | 150 g |
Summary
GM50RE is a remote matching instrument of GM50HR and GM50CR. Through RS485 port connection, it can remotely read and display the relevant parameters of the engine. One auxiliary instrument monitors one host to realize real-time synchronization of parameters. The parameters can be adjusted and set through the key to meet the needs of different applications. In addition, European terminal connection is adopted to facilitate the installation and replacement of modules.
Features
32 bit high performance single chip microcomputer
High-light digital tube can demonstrate the parameters
English and symbols demonstration
The parameters can be set and adjusted by the button on the front face.
Parameters Display
Engine RPM
Engine Oil Pressure
Engine Oil Temperature
Engine Cooling Water Temperature
Battery Voltage
Accumulation Time.
