| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3681A069 |

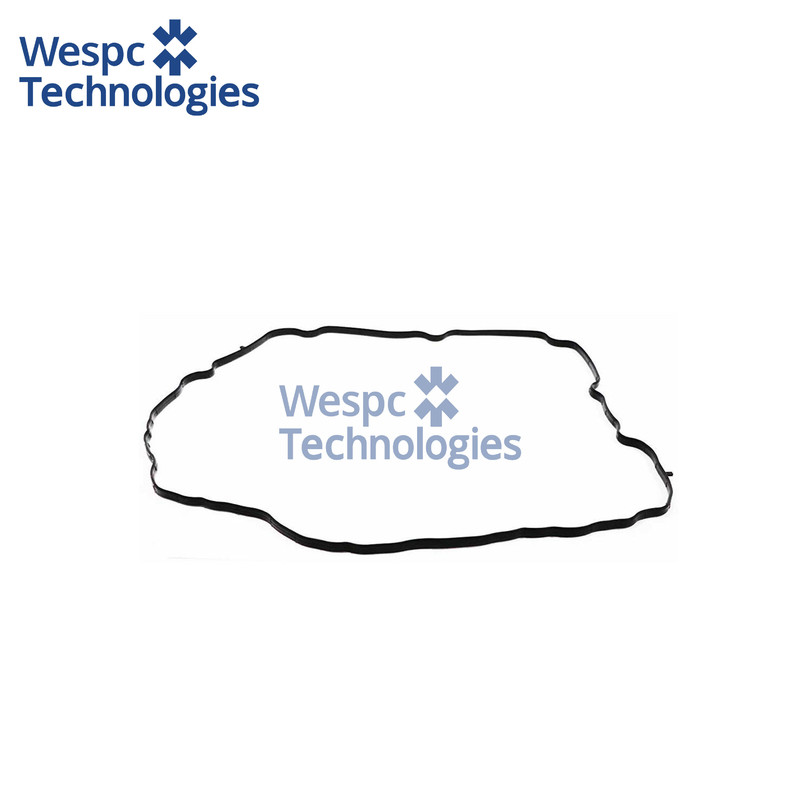

WESPC Valve Cover Gasket 3681A069 For Perkins 1104D-E44T 1104D-E44TA 1104C-E44T
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3681A069 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Valve Cover Gasket 3681A069 seals the rocker cover on Perkins 1104D-E44T, 1104D-E44TA and 1104C-E44T 4-cylinder 4.4 L diesels as well as the earlier 1004.4 and T4.236/AT4.236 4.0 L turbocharged engines. Typical host machines are JCB 3CX/4CX back-hoe loaders, JCB 535-95/540-170 telescopic handlers, Manitou MLT 1440 telehandlers, Terex TLB 840, Massey Ferguson 6465/6470/7480 tractors, McCormick MTX/MCX range, Landini Legend and Atlantis models plus 60–200 kVA generator sets and compact wheel loaders used throughout European, North-American and Middle-East rental fleets. Because the gasket footprint and 8 × 6 mm locating dowels are dimensionally identical to legacy 4.236 rocker covers, the same 3681A069 seal covers forty years of 4-cylinder Perkins production, making it a single service solution for vintage combines, forklifts and irrigation pumps still operating worldwide.
Technical specifications:
Overall length 420 mm, width 85 mm, thickness 0.8 mm, bead diameter 2.5 mm, 14 × 6 mm bolt holes on 74 mm pitch. The gasket is moulded from high-temperature fluorosilicone rubber (FVMQ) with a cold-rolled steel carrier (0.25 mm) that prevents over-compression and maintains torque retention.
Material & performance features:
The FVMQ layer resists engine oil, biodiesel, ULSD and coolant mist without swelling or hardening, while the steel carrier prevents blow-out under 12 N m bolt torque. A 0.3 mm compression stop limits bead crush to 30 %, giving a recovery > 90 % after 500 thermal cycles between –30 °C and +250 °C.
Interchange part numbers:
3681A069, 3681A068, 3681A067, 3681A066, 3681A065, 3681A064, 3681A063, 3681A062, 3681A061, 3681A060, 3681E074, 3681E073, 3681E072, 3681E071, 3681E070, 3681E069, 3681E068, 3681E067, 3681E066, 3681E065, 3681E064, 3681E063, 3681E062, 3681E061, 3681E060, 3681E059, 3681E058, 3681E057, 3681E056, 3681E055, 3681E054, 3681E053, 3681E052, 3681E051, 3681E050, 3681E049, 3681E048, 3681E047.
