| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV58VS |

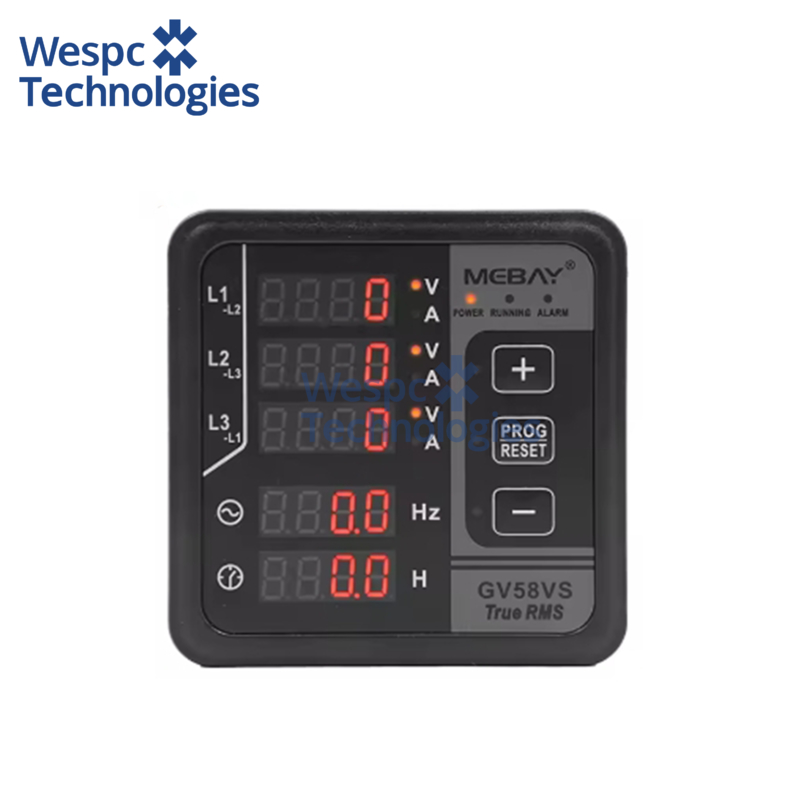

WESPC Original GV58VS Engine Digital Multi-functional Meter Generator Parts
| Power Supply | DC8～36V Continuous |
| Power Consumption | MAX1.5W |
| Part Number | GV58VS |
| Overall dimension | 100mm*100mm*77mm |
| Panel cutout | 91mm*91mm |
| Weight | 0.32Kg |
Summary
GV58VS is one multi-functional Meter for three-phase generator. It has the function of automatic protection and alarm indication. The panel has power on indication, closing status indication and alarm indication functions; it has over frequency, under frequency, over voltage, under voltage and over current alarm protection functions.
The alarm protection output uses relay, which can output large current. The instrument can set the parameters by pressing the key, so as to meet the application of different requirements.
Main Features
Micro-computer Control.
High-lighted LED tube Indication.
Five screens display.
DC power supply.
Configurable AC CT Ratio .
Wide voltage range.
Parameters display
Line Voltage:L1-L2,L2-L3,L3-L1；
Three phase current
Frequency
Accumulated time
Protection function
Over frequency
Under frequency
Over voltage
Under voltage
Over current
Range and accuracy
AC voltage:Phase voltage AC30-276V,Deviation≦±1%(within the range)
Current:0-6000A；deviation≦±2%
Frequency:10-70HZ;deviation≦±0.5%;
Accumulated time:0-9999hours(min:0.1hours),deviation≦±1%.
