| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC20D MKII |

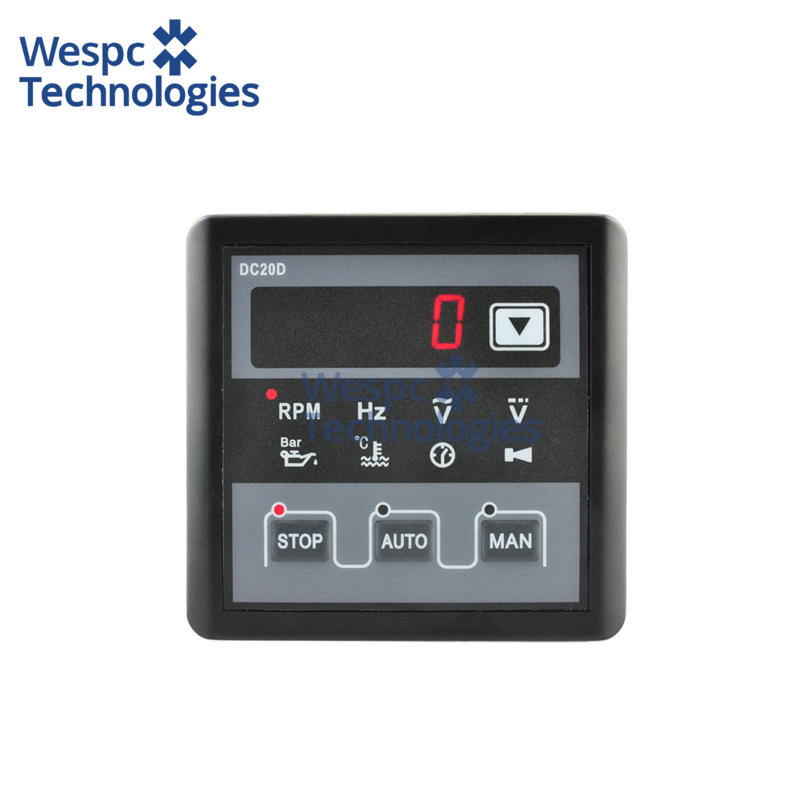

WESPEC Original DC20D MKII Electronic Generator Controller Module Control Panel
| DC Supply | DC 8～36V |
| Power Consumption | MAX 3W |
| Size | 78mm * 78mm * 55mm |
| Panel cut-out | 67mm * 67mm |
| Operation Temperature | -30℃～70℃ |
| Storage Condition | -40℃～85℃ |
Summary
DC20D MK2 is one module used for Diesel/gasoline Generator, It's an upgraded product of DC20D.It is with the functions of Auto Star/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.
The status of the engine and generator can be checked conveniently because these parameters of over speed, under speed, Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.
The output connector is connected with traditional relay which can burden more output current. The parameters can also be set by the front face buttons so that it can be used in different kinds of situations.
Main Features
Micro-computer Control
Man/Auto Start/Stop
5 Units LED tube Display
LED and Fault Alarm Code Indication
Two Group of programmed Relay output
Application for various kinds of Engine by self-setting
With RS485 communication port
Control
Manual Start/Stop
Auto Start/Stop
Preheat Control
Auto idle control
Choke control
E.S.T control
Parameters Display
Engine RPM
Generator Frequency Hz
Generator Phase voltage L-N
Generator current A
Engine battery voltage
Running time
Accumulation time
Engine water temperature
Engine oil pressure
