| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC72DR MK2 |

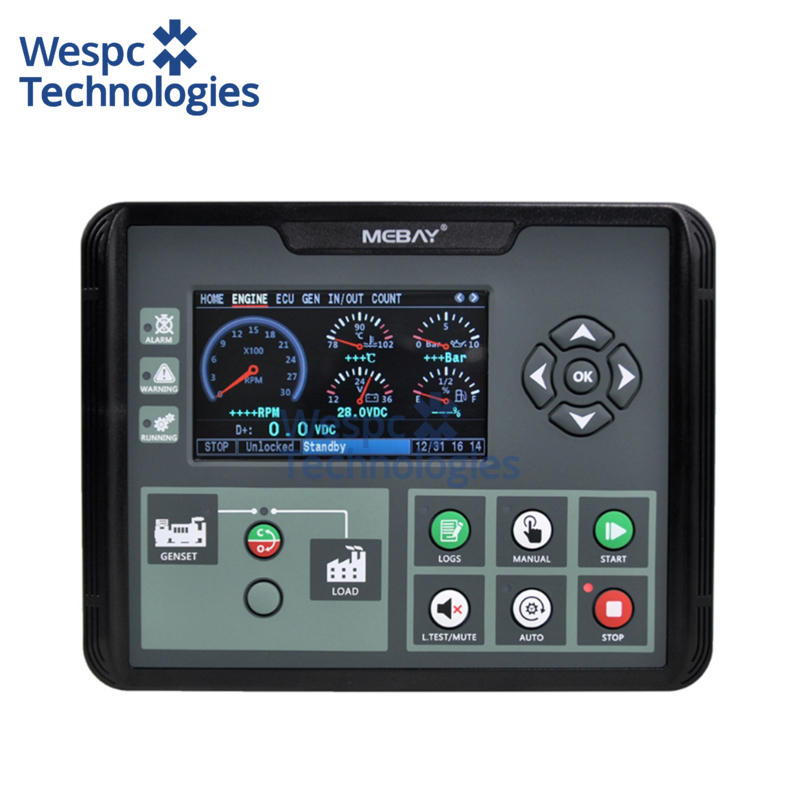

WESPEC Original Mebay DC72DR MK2 Genset Parts Generator Control Unit Controller
| DC Supply | DC 8～36V |
| MAX Accumulating Time | 99999.9Hours(Min Store time:6min) |
| Rotate speed sensor Frequency | 200-10000Hz |
| Operation Temperature | -20-65℃ |
| Storage Condition | -40-85℃ |
| Overall dimension | 210mm*160mm*50mm |
| Panel cutout | 186mm*142mm |
| Weight | 0.85Kg |
Summary
This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions. This controller uses a 4.3-inch TFT color large-screen LCD to display relevant parameters of the generator set. It has a new and original UI design. The parameters are displayed through analog pointers and numbers. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly. The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.
Performance and features
The DC7xD series is available in four models: DC70D: used for stand-alone automation, controlling the automatic starting and stopping of the generator set through remote start signals; DC72D: Based on DC70D, it adds mains monitoring and mains/generation automatic switching control (AMF) functions, and is suitable for single-machine automation systems consisting of one mains supply and one generator set. DC70DR: Add RS485 interface on the basis of DC70D; DC72DR: Add RS485 interface on the basis of DC72D;
