| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1824840C2 1842912C1 |

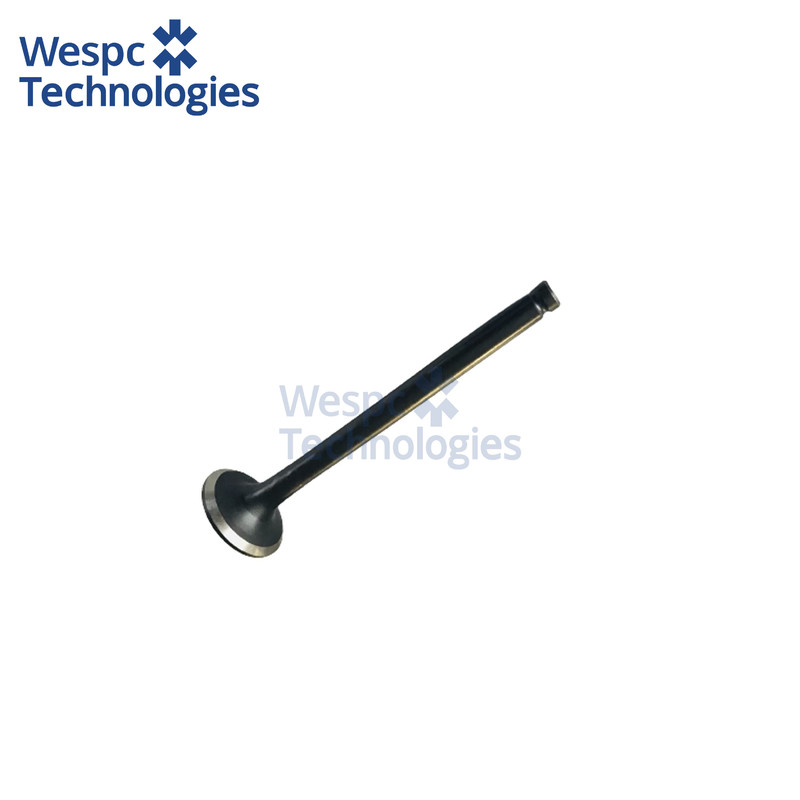

WESPC Exhaust Valve 1824840C2 1842912C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1824840C2 1842912C1 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
These two numbers describe the same exhaust valve: Navistar part 1824840C2 is the bare valve, while 1842912C1 is the latest superseded service assembly. The valve is fitted to Navistar DT466E / DT530E HEUI engines produced 1993-2003 and to Perkins 1300 / 1306-E76T, E76TA, E87T and E87TA industrial engines used in FG Wilson P275-P550 generator sets, JCB 456 wheeled loaders, Manitou MLT-X 1040 tele-handlers and Claas Lexion 600 combines.
Technical specifications:
Head diameter 44.5 mm, stem diameter 9.5 mm, overall length 167 mm, 45° seat angle, 0.8 mm margin thickness. Stem is chrome-plated 0.03 mm to reduce guide wear; tip is stellite-faced to 1.0 mm depth for 55 HRC hardness against rocker wear. Valve is validated for 24 000 h at 450 °C face temperature and 220 bar cylinder pressure.
Material & performance features:
The head is forged from 21-4N (Ni-Cr-Mn) austenitic stainless steel, solution-treated at 1 150 °C and aged at 750 °C to achieve 30 HRC strength with 35 % elongation. Chrome-plated stem gives <0.3 µm surface finish, cutting guide wear by 40 %.
Interchange part numbers:
Navistar 1824840C2, 1824840C1, 1823876C1, 1842912C1; Perkins 1824840C2 (exhaust), 1842913C1 (inlet); KMP 1842912C1.
