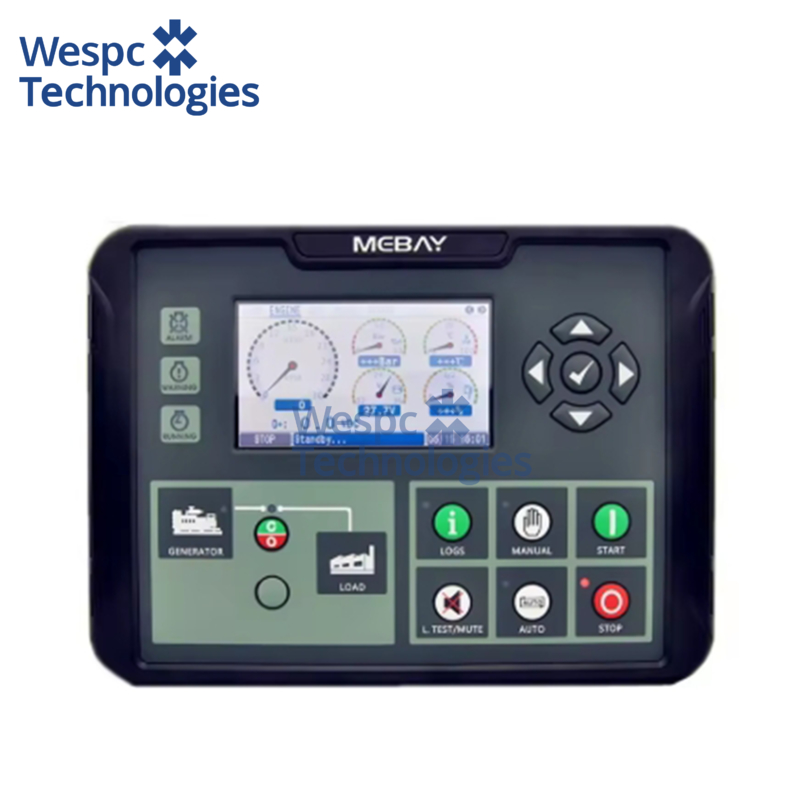

WESPEC Original Mebay DC80DR MK3 Automatic Genset Controller Control Panel Unit

There are four Models under DC8xD MK3 series.
DC80D MK3: used for single machine automation. Start/Stop through remote start signal.
DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
DC80DR MK3: Based on DC80D MK3, it adds RS485 port.
DC82DR MK3: Based on DC82D MK3, it adds RS485 port.
32bit high performance single chip microcomputer.
4.3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USB port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
Various kinds of parameters display.
Input/output function, status can be shown directly.
More categories of surface setting.
Real time clock inside.
Maintenance countdown function, can set maintenance timing or date.
The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is
convenient to find the cause of the fault.
Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions,
besides, there are 2 groups as non-contact terminals.
5 relays can be set as switch value input, and function configurable.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP65.
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
