| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV14DC |

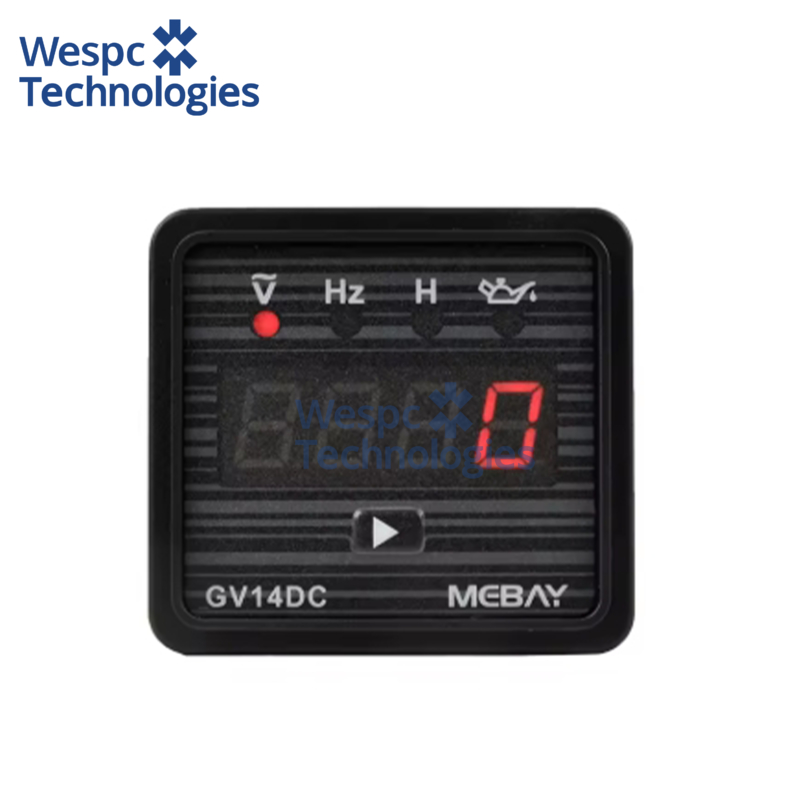

WESPC Original Mebay GV14DC Digital Generator Multimeter Voltage Frequency Meter
|
Model Number |
GV14DC |
| Rated Current | 9999 |
| working power | DC 12V |
| Single package size | 5X2X6 cm |
| Installation size(W * H) | 47mm * 37mm |
| Single gross weight | 0.500 kg |
Summary
GV14DC is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time
of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection
which is more convenient for installation.
Features
*Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
*Results shown by 4-position digital LED tube
*Self-recycling of parameters
*with Page Turning Buttons
*DC voltage supply
Parameter Demonstration
*Phase voltage*Frequency
*Cumulative running time
*Low oil pressure alarm switch indication
Measuring range and accuracy
*Voltage: ac30-450v, error ≤± 1%
*Frequency: 20-70hz, error ≤± 0.5%
*Cumulative operation time:
0-9999h
