| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC30TR-ABF |

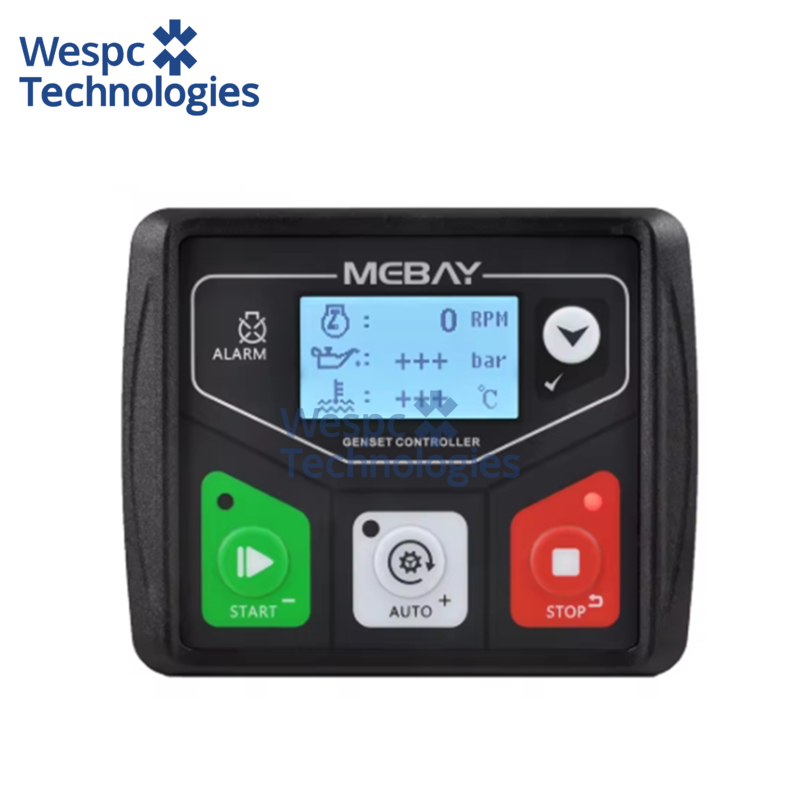

WESPC Original Mebay DC30TR-ABF Small Auto Generator Controller Battery Pack
| Model Number | DC30TR-ABF |
| Rated Current | 9999 |
| Working condition | -20-65℃ |
| Storage condition | -40-85℃ |
| Overall dimension | 106mmX86mmX45mm |
| Weight | 0.5Kg |
Summary
This Controller Series is specialized for small diesel, gasoline, gas generator sets’start, stop,monitor and defaults checking as well as parameters setting.
Product Variants:
DC30T: used for single machine automation, controlling the automatic start and stop of the generator set through remote start signals with USB interface, matched with a 50mA small-sized current transformer;
DC30TR-ABF: On the basis of DC30T, cancel the USB interface, add RS485 and UPS battery pack input ports, and add ABF (Auto Battery Fail) backup battery pack failure detection function;
Main Features
*32 units Micro-procession technology is used.
*1.8 inches 128*64 LCD display with backlight, option language interface (Chinese/English), user's language set if necessary.
*PC front face panel, which is water-proof, oil-proof, UV proof so that the durability is longer
* All the parameters can be set through front panel buttons.
* Collect and display a variety of engine and generator parameters.
Main Features
* Records function: relative faults shall be recorded in real time.
* It has 4relay outputs, 2 of which are configurable.
* 1switch value input, and each can be set as max 10 functions. * 3 sensor simulation input connectors, various kinds of units can be set.
* Various of crank conditions(RPM,Frequency, Oil Pressure)
