| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC42CR |

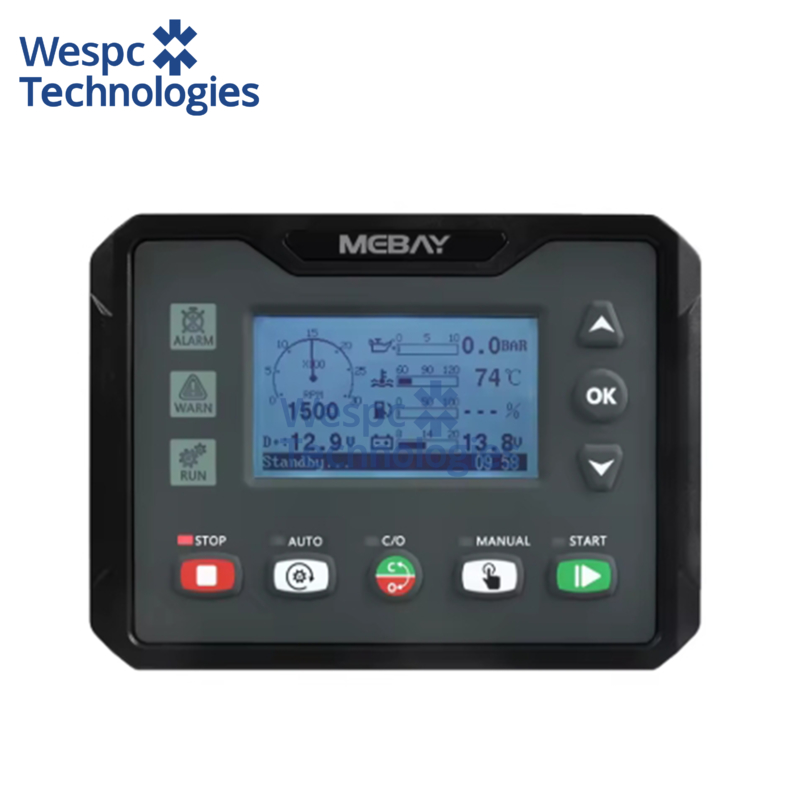

WESPC Original DC42CR Remote Genset Controller Automatic Mains Failure Function
|
Operation Voltage |
DC8-36V Continuous |
| Frequency | 50-10000Hz |
| Rated Current | 9999 |
| Storage condition | -40-85℃ |
| Working condition | -25-65℃ |
| Overall dimension | 142mm*105mm*45mm |
| Panel cutout | 116mm*90mm |
| Weight: | 0.6Kg |
summary
This series of controllers is designed for the start, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and has parameter setting functions. This controller uses a 2.8-inch 240*128 large-screen high-resolution LCD display, a new and original UI design, and the parameters are displayed through analog pointers and digital displays. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective parking when the generator set is not working properly. The controller has built-in display interfaces such as simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.
Main Features
1. Real time clock inside: preset time, operate and auto maintenance is available.
