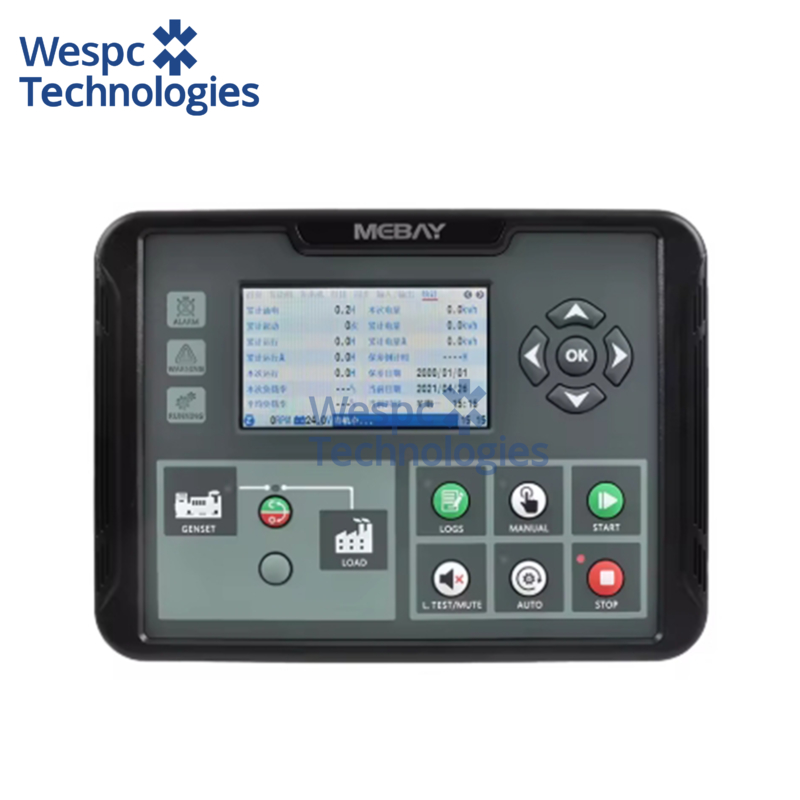

WESPC Original Mebay DC100D MK2 Mebay Genset Synchronize Control Panel
|
Model Number |
DC100D MK2 |
| Type | Control Panel |
| Brand Name | MEBAY |
|
Overall dimension
|
241mm*177mm*45mm |
| level of protection | IP65 |
| Weight: | 1kg |
summary
Main Features
32bit high performance single chip microcomputer.
4.3inch TFT colorful big screen LCD, Available in 9 languages, user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USB port to monitor in real time.
With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.
MSC CAN communication interface, capable of communicating with multiple generator sets;
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ).
Collects and shows 3-phase voltage, current, power parameter and frequency of mains and bus.
For mains, controller has over voltage, under voltage, over frequency, under frequency ,loss of phase and phase sequence wrong detection functions; For bus, controller has over current, over power, loss of phase, phase sequence wrong detection functions.
Synchronization parameters: Voltage Difference Between Bus and Mains, Frequency Difference Between Bus and Mains, Phase Difference Between Bus and mains, multiple running modes in auto state: AMF (Automatic Mains Failure), Island Mode, Fixed Power,Peak Lopping Mode and Load Takeover Mode.
Ramp on and ramp off function.
Control and protection: automatic start/stop of the diesel genset, ATS(Auto Transfer Switch) control with perfect fault
indication and protection function;
Real time clock inside: preset time operate and auto maintenance is available. Gen set working plan can be set as per week or month.
Protection countdown function, which can set the maintenance time or date.
The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is
convenient to find the cause of the fault.
Input/output function status display, totally 8 relay’s output, among which 6 relay output can be self-configurable, each relay can be set as max 80 functions, besides, there are 3 groups as non-contact terminals.
With 8 switches input, up to 80 functions optional.
Standard water-proof rubber gasket. The waterproof can reach IP65.
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
