| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC50CR |
WESPC Original DC50CR Remote ECU Engine Genset Controller DC50CR CAN Port
|
Operation Voltage |
DC8-36V Continuous |
| working conditions | -20-65℃ |
| Storage condition | -40-85℃ |
| Products Advantages | Genuine 100% |
| Overall dimension | 30X20X10 cm |
| Weight | 1Kg |
summary
DC50CR is adopted RS485 Port and standard CAN communication port, built-in J1939 protocol and can be used to remote Start or Stop Diesel / Gasoline / Gas Genset, monitor Parameters, check faults as well as set data.
All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
Main Features

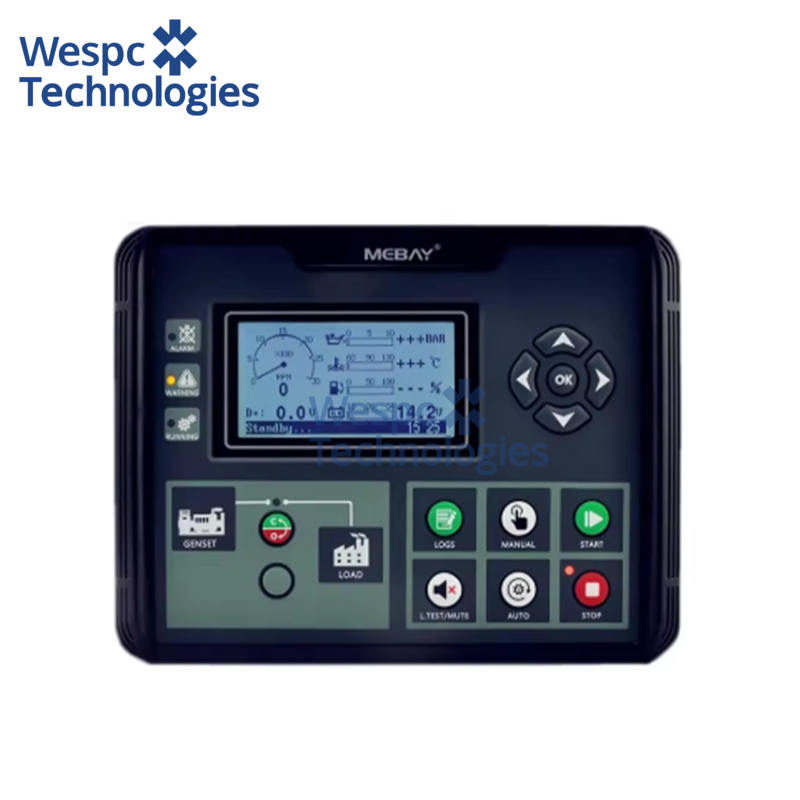

1. 3.5 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if necessary.
2. Input/output function, status can be shown directly.
3. With Real Time Clock, Event Record, Maintenance Countdown, Battery charging control Function.
4. Totally 6 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 30 functions,
besides, there are 3 groups as non-contact terminals.
5. With 5 switches input, up to 20 functions optional;
6. 3 sensor simulation input connectors,
