| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1842912C1 |

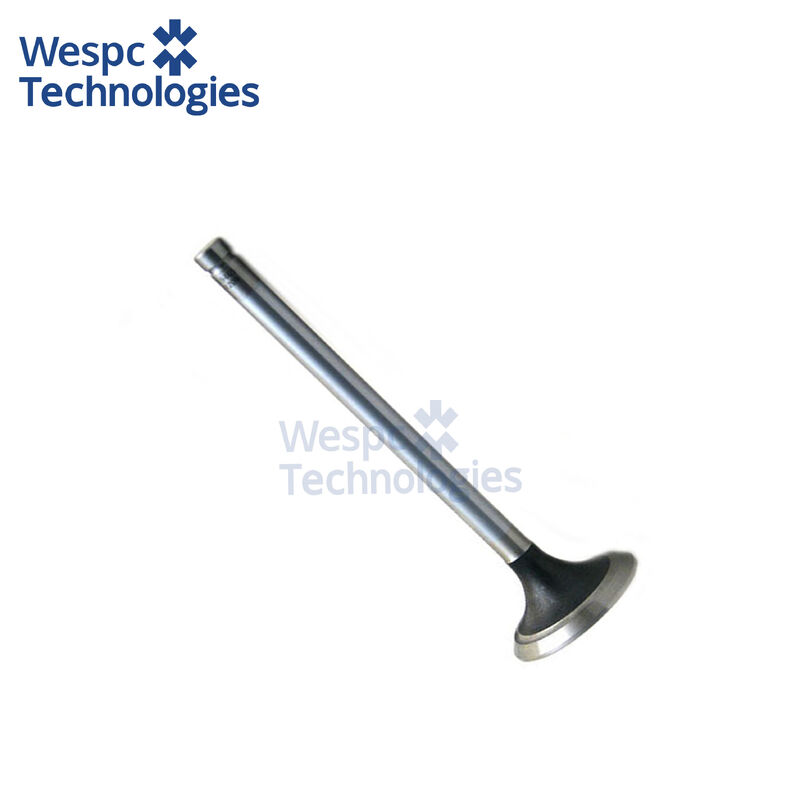

WESPC Exhaust Valve 1842912C1 for Perkins 1300 1306 series diesel engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1842912C1 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The 1842912C1 exhaust valve is designed for Perkins 1300 and 1306 series six-cylinder diesel engines (7.6-8.7 L displacement), specifically 1306C-E87TAG (WGDF, WGEF, WGFF, WGHF builds), 1306-E76T (WK, WP variants), 1306-E76TA (WL), 1306-E87T (WM, WR), and 1306-E87TA (WN, WS) turbocharged models. This valve is also directly interchangeable with Navistar International DT408, DT466E, and DT530E HEUI diesel engines used in Class-6/7 haulage trucks, school buses, 150-300 kVA generator sets, and agricultural tractors. The component serves the exhaust function in high-boost, high-temperature diesel combustion environments where peak cylinder pressures exceed 180 bar and exhaust gas temperatures reach 750°C.
Technical specifications:
Head diameter: 1.786 inches (45.36 mm);Overall length: 5.992 inches (152.2 mm);Seat angle: 45° with precision-ground sealing face;Stem diameter: 0.3714 inches (9.43 mm);Stem type: 1G (single-groove for split collet retention);Tip length: 0.2420 inches (6.15 mm) induction-hardened;Tulip profile: Swirl-polished to improve flow coefficient and reduce pumping losses;Lock groove: 7° angle accepting 8 mm collets with 0.04-0.06 mm clearance.
Material & performance features:
Manufactured from high-grade austenitic steel alloy 1.4871 (X53CrMnNiN219) or equivalent 21-4N derivative containing 21% chromium, 4% nickel, 9% manganese, and 0.45% nitrogen. The head undergoes solution treatment at 1,150°C followed by age-hardening to achieve 28-32 HRC hardness at ambient temperature, rising to 38 HRC at 700°C for superior creep resistance under continuous full-load exhaust temperatures up to 800°C. The stem receives gas nitriding treatment creating a 0.02-0.04 mm deep surface layer exceeding 750 HV hardness to resist scuffing during prolonged low-speed, high-boost operation.
Interchange part numbers:
PERKINS 1842912C1 (primary specification);PERKINS 1824840C2 (direct supersede);NAVISTAR 1842912C1, 1824840C1;MADE-IN-CHINA OEM cross:1823875C2/1824840C1/1842912C1 (bulk sourcing package);Aftermarket suppliers: HEAVY DUTY PROS 1842912C1, DISENPARTS 1842912C1, ORANGE PARTS 1842912C1
