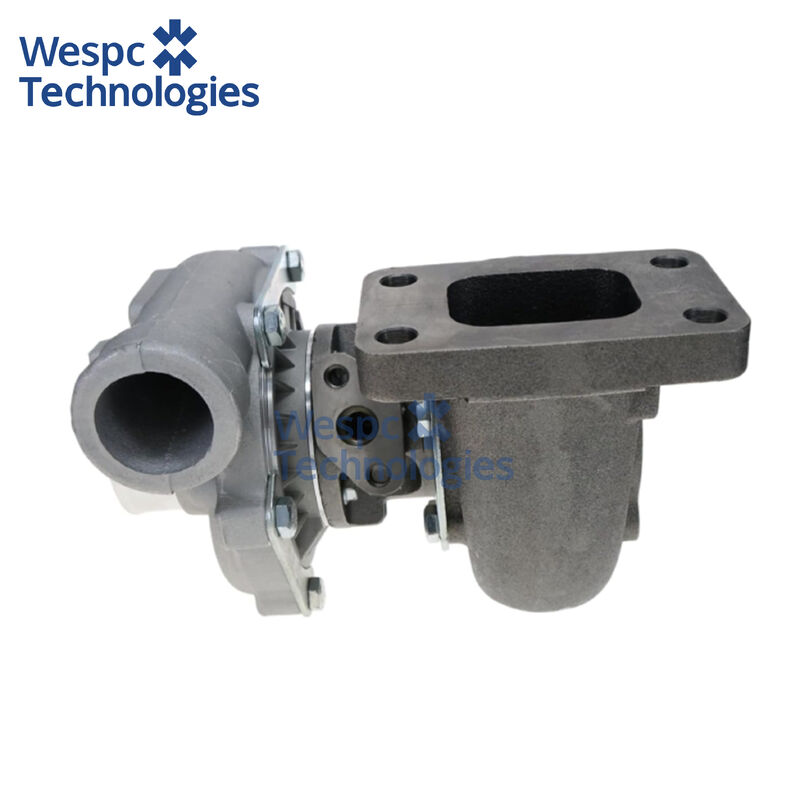

WESPC 2674394 Turbocharger for Perkins 1004 4T 1004 4THR Gt2052s Marine Industry
WESPC 2674394 Turbocharger for Perkins 1004 4T 1004 4THR Gt2052s Marine Industry
Product Details:
Place of Origin:
China
Brand Name:
WESPC
Certification:
CE,RoHS,ISO9001
Model Number:
2674394
Detail Information
Place of Origin:
China
Brand Name:
WESPC
Certification:
CE,RoHS,ISO9001
Model Number:
2674394
Product Name:
Turbocharger
Stock:
Yes
Packing:
Carton
Warranty:
1 Year
Place Of Origin:
CHINA
Material:
Metal
Trading Information
Minimum Order Quantity:
1
Price:
U$167-189(1pcs)
Packaging Details:
Carton
Delivery Time:
5-8 work days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
In Stock
Product Description
WESPC 2674394 Turbocharger for Perkins 1004 4T 1004 4THR Gt2052s Marine Industry
Brand Name
WESPC
Product Name
Turbocharger
Part Number
2674394
Material
Metal
Marketing Type
Ordinary Product
Certificate
ISO9001
Warranty
1 year
Stock
Yes
Application The WESPC 2674A394 turbocharger is built for Perkins 1004-4T, 1004.4THR and Cat C4.4 four-cylinder diesels rated 85 kW /115 hp.These 4.4 L engines power FG Wilson P110-5, P110E2 generator sets, Cat 3054E, 320D2GC, 318D2L, M315D2, M317D2 excavators,CB10-CB16, CB64B-CB68B compactors and Liu-Gong 842H / 856H wheel loaders—one turbo covers industrial, earth-moving and power-generation fleets worldwide.
Technical specifications TA3120 frame; compressor wheel OD 56 mm, turbine wheel OD 49 mm; total length 320 mm, body diameter 220 mm, weight 10 kg; oil inlet M14 × 1.5, oil drain 2 × M8 on 42 mm PCD; water connections 2 × M12; maximum continuous boost 2.2 bar, peak turbo speed 165000 rpm, exhaust gas temperature limit 750 °C.
Material & performance features Turbine housing cast from Ni-Resist ductile iron for 750 °C fatigue strength; compressor wheel milled from 7075-T6 aluminium,hard-anodised to 50 HV for salt-spray resistance; shaft is 42CrMo vacuum-nitrided to 900 HV, running on brass floating-bush bearings with 0.12 mm oil film for >8 000 h service before rebuild; water-cooled centre housing eliminates oil coking during hot-shutdown, keeping oil temperature <120 °C at 45 °C ambient; every unit is spin-balanced to <0.5 g-mm, giving <72 dB(A) noise and zero shaft vibration throughout the 1 400–2 200 rpm engine speed range.
Interchange part numbers 2674394, 466854-0001, 466854-1, 934-197, 1310917, KRP1695.
