| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3142D031 |

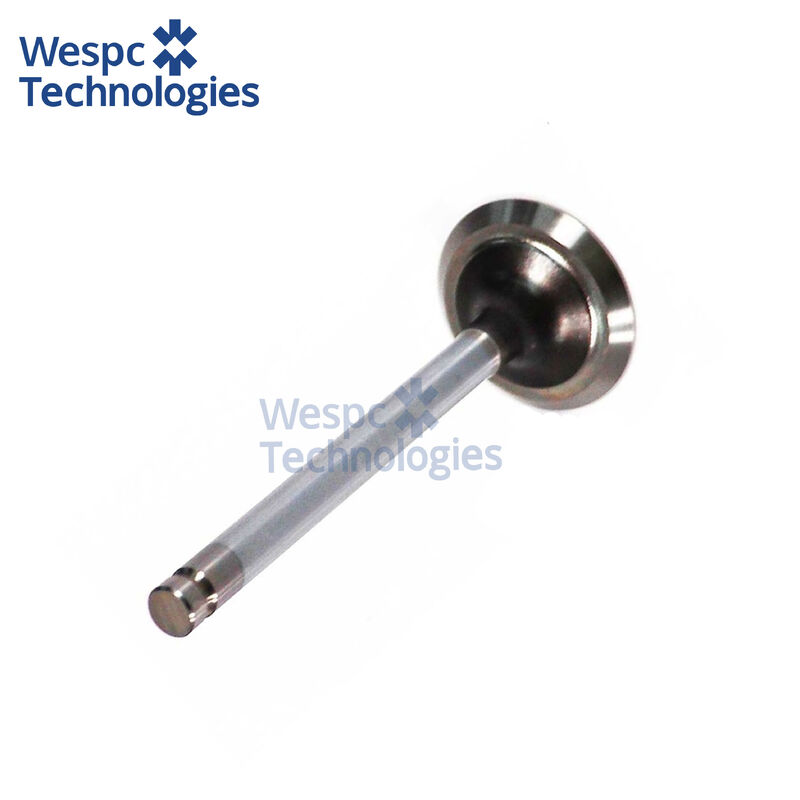

WESPC Exhaust Valve 3142D031 for Perkins six cylinder diesel engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142D031 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Perkins 1004.04T, 1006.60T, 1106C-E60TA, and 1106D-E66TA six-cylinder diesel engines (4.4-6.6 L displacement). This exhaust valve is deployed in Massey Ferguson agricultural tractors including models 4255, 4255HV, 4355, 4355HV, 5465, 6255, and 6255HV , as well as JCB construction machinery (Series 400, 407B ZX, 408B ZX) and Bobcat equipment (T, T 2556 Turbo, T 3093 S Turbo series). The valve also fits Yanmar 4TNV98L-NLAN engines and Perkins 1004 series four-cylinder diesels used in generator sets, compact loaders, and industrial power units .
Technical specifications:
Stem diameter: 8.95 mm (0.352 inches)
Overall length: 123 mm (4.843 inches)
Valve head diameter: 41 mm (1.614 inches)
Seat angle: 45° precision-ground sealing face
Material: High-alloy steel (iron-based)
Tip configuration: Induction-hardened to resist wear from rocker arm contact
Stem type: Single-groove for split collet retention (7° collet angle)
Weight: 0.07-0.125 lbs (32-57 grams) per valve
Quantity per engine: 6 exhaust valves for 6-cylinder applications
Material & performance features:
Manufactured from high-alloy steel with 0.35-0.45% carbon content, 1.5-2.5% chromium, and additions of molybdenum for enhanced high-temperature strength and corrosion resistance . The valve head undergoes solution treatment at 1,050-1,100°C followed by age-hardening to achieve 28-32 HRC hardness, maintaining structural integrity at exhaust gas temperatures exceeding 700°C. The stem receives gas nitriding treatment creating a 0.02-0.04 mm deep surface layer exceeding 750 HV hardness to resist scuffing during prolonged operation.
Interchange part numbers:
PERKINS 3142D031 (primary OEM specification)
Massey Ferguson 4222896M1 (tractor application reference)
IPSA VL147900 (European aftermarket)
FRECCIA 6307, R6307/RCR (Italian aftermarket)
TRW Engine Component 105-35610 (automotive aftermarket)
OSVAT 1310 (aftermarket brand)
SRP Americas 988-919 (North American distributor)
PERKINS 3142D051 (related part number for similar applications)
PERKINS T423393 (superseded part for some 1106 builds)
PERKINS 3142A181 (alternative exhaust valve for 1106 series)
