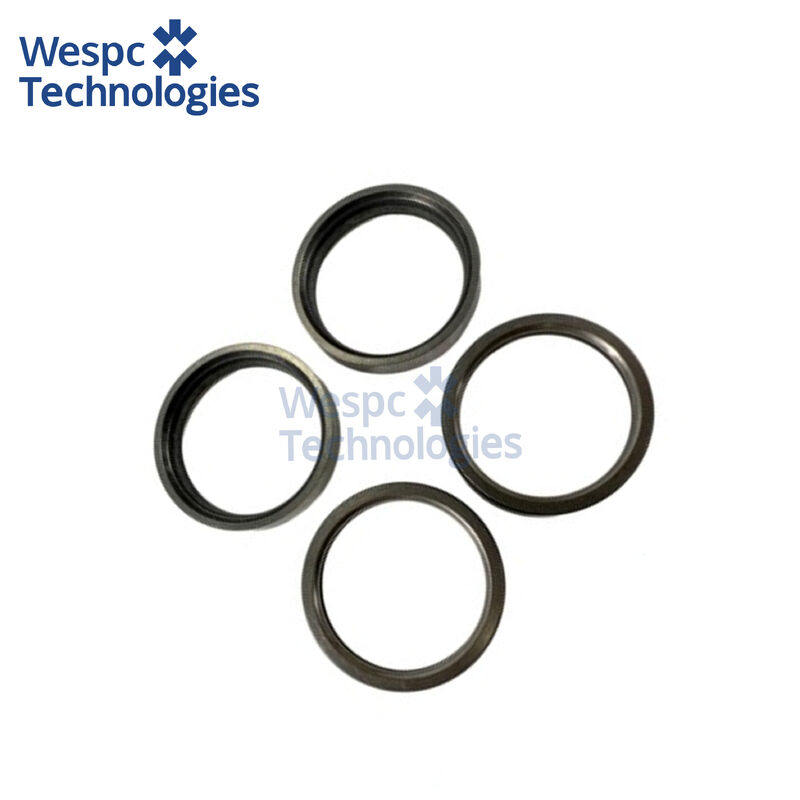

Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
  • Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
  • Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
  • Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
  • Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
  • Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines

Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines

Product Details:
Place of Origin: China
Brand Name: WESPC
Certification: ISO9001
Model Number: 3314A241
Detail Information
Place of Origin:
China
Brand Name:
WESPC
Certification:
ISO9001
Model Number:
3314A241
Product Name:
Intake Valve Seat 3314A241
Condition:
100%new
Quality Class:
High-Quality
Stock:
Yes
Warranty:
1year
Packaging:
Carton
Highlight:

High Light

Highlight:

3314A241 Perkins Intake Valve Seat

,

3314A241 Intake Valve Seat

,

Intake Valve Seat

Trading Information
Minimum Order Quantity:
10
Price:
$3-$6(1 Piece)
Packaging Details:
carton
Delivery Time:
5-10 work days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
In stock
Product Description
WESPC Intake Valve Seat 3314A241 for Perkins Four Cylinder Diesel Engines
Brand Name WESPC
Place of Origin China
Part Number 3314A241
After-sales Service Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 3314A241 intake valve seat is engineered for Perkins 1104C-44, 1104C-44T, 1104D-44, 1104D-44T, and 1104C-E44T four-cylinder diesel engines (4.4L displacement). These engines are widely used in:
  • JCB backhoe loaders (3CX, 4CX series)
  • Telescopic handlers (Loadall series)
  • Wheeled excavators and rough-terrain forklifts
  • Agricultural tractors including Massey Ferguson 4200, 4300, 5300, 6100, and 8100 series
  • Generator sets producing 60-90 kVA continuous output
  • Cater C4.4 engine derivatives in compact construction equipment
The intake valve seat installs within the cylinder head combustion chamber, providing a precision sealing surface for intake valves operating in turbocharged diesel environments where air-fuel mixture temperatures can reach 200°C during the intake stroke.
Technical Specifications
  • Outer diameter: 42.5 mm
  • Inner diameter: 34.25 mm (intake valve head contact surface)
  • Height: 7.60 mm (overall thickness)
  • Taper angle: 45° sealing face (standard for diesel intake applications)
  • Valve compatibility: Intake valves 3142H071 (Perkins specification)
  • Engine family: 1104C, 1104D, 1104-E (C and D suffix denote emissions Tier level)
  • Quantity per engine: 4 pieces (one per cylinder)
  • Weight per unit: 0.03 kg (30 grams)
  • Packaging dimensions: 5.0 cm × 5.0 cm × 5.0 cm per unit
  • Thermal conductivity: Engineered to dissipate heat loads exceeding 500°C during sustained turbocharged operation
Material & Performance Features
Manufactured from high-alloy sintered steel with premium-grade iron-based powder metallurgy composition, the 3314A241 valve seat features advanced material engineering for superior durability in severe-service diesel applications. Key performance characteristics include:
  • Material matrix of tempered martensite with uniformly distributed fine carbides
  • Exceptional hardness of 45-48 HRC and compressive strength exceeding 1050 N/mm²
  • Copper infiltration process enhances thermal conductivity by 35% compared to conventional cast iron seats
  • Precision CNC machining achieves surface finish Ra < 0.8 μm on the sealing face
  • 45° sealing angle optimized for Perkins 1104 series intake valve geometry
  • Advanced heat treatment prevents dimensional changes under thermal cycling (ambient to 600°C)
  • Resists valve recession, valve seat pitting, and high-velocity erosion
  • Service life exceeding 6000 engine hours in continuous-duty applications
Interchange Part Numbers
Primary Reference
Perkins 3314A241 (supersedes 3314A221 effective 06/12/2007)
Perkins System Identifier
3314A241
Exhaust Valve Seat Counterpart
3314A231 (creates matched set per cylinder)
Equipment Manufacturer References
1104C-44, 1104C-44T, 1104D-44, 1104D-44T, 1104C-E44T
Service Part Grouping
Typically ordered with intake valves 3142H071, valve guides 3313A012, and valve stem seals 2418M519
