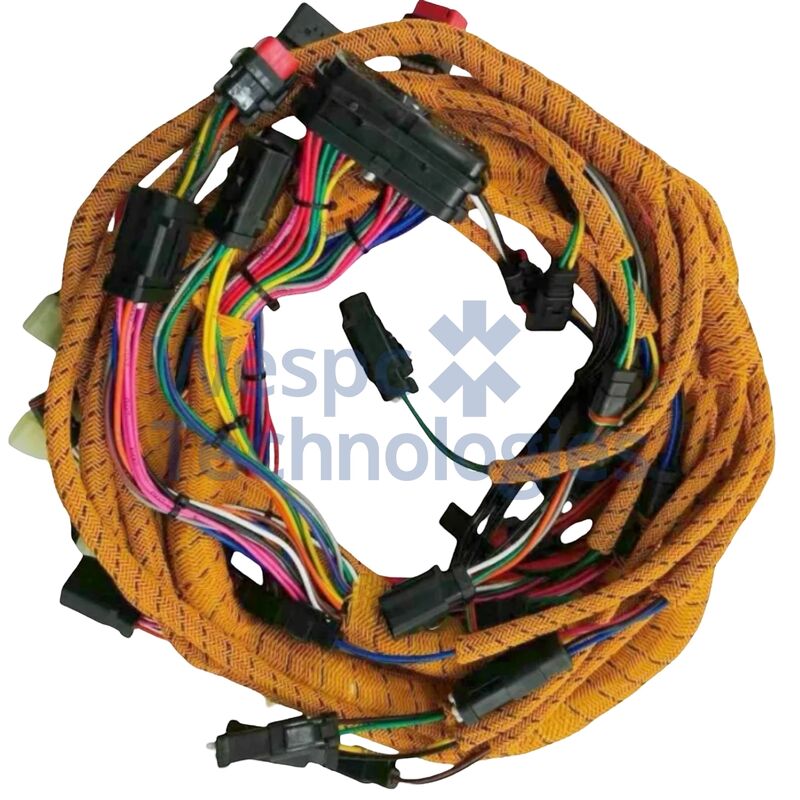

WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators
  • WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators
  • WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators
  • WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators
  • WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators
  • WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators

WESPC Wiring Harness 275-7004 For Cat 320D and 323D series hydraulic excavators

Product Details:
Place of Origin: China
Brand Name: WESPC
Certification: ISO9001
Model Number: 275-7004
Detail Information
Place of Origin:
China
Brand Name:
WESPC
Certification:
ISO9001
Model Number:
275-7004
Product Name:
Wiring Harness 275-7004
Condition:
100%new
Quality Class:
High-Quality
Stock:
Yes
Warranty:
1year
Packaging:
Carton
Highlight:

High Light

Highlight:

WESPC wiring harness for Cater 320D

,

excavator engine wiring harness 275-7004

,

Cater 323D hydraulic wiring harness

Trading Information
Minimum Order Quantity:
10
Price:
$310-$450(1 Piece)
Packaging Details:
carton
Delivery Time:
5-10 work days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
In stock
Product Description
WESPC Wiring Harness 275-7004 For Cat 320D and 323D Series Hydraulic Excavators
Brand Name WESPC
Place of Origin China
Part Number 275-7004
After-sales Service Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 275-7004 Wiring Harness is a critical Platform Wiring Harness (also referenced as Cabin Internal Wiring Harness) specifically engineered for Cat 320D and 323D series hydraulic excavators. This harness serves as the primary electrical backbone connecting the operator cab to the main platform and chassis systems, facilitating comprehensive power distribution and signal transmission between critical machine components.
It is extensively utilized across the Cat 320D family including standard 320D, 320D FM (Forest Machine), 320D GC (General Construction), 320D L (Long Boom), 320D LRR (Reduced Radius), 320D RR (Road Builder), as well as the 323D L models.
Technical Specifications
  • Harness Type: Platform/Cabin Internal Main Wiring Harness (Harness AS-Platform)
  • Weight: Approximately 5.0 kg (11 lbs) to 6.1 kg (13.5 lbs) depending on configuration
  • Compatible Equipment: Cat 320D, 320D FM, 320D GC, 320D L, 320D LRR, 320D RR, 323D L excavators
  • Engine Compatibility: Cat C6.4 and C6.6 diesel engines
  • Voltage Rating: 24V DC heavy-duty construction equipment electrical systems
  • Connector Systems: Multi-pin configurations utilizing Deutsch, Molex, AMP, and JAE terminal technologies with precision-molded housings
  • Conductor Gauge: AWG 18 stranded tinned oxygen-free copper meeting ASTM B33 specifications
  • Circuit Configuration: Multi-conductor bundle containing over forty individually insulated conductors
  • Insulation Materials: Multi-layer construction featuring heat-resistant silicone rubber, chlorosulfonated polyethylene (CSPE), and cross-linked polyethylene (XLPE)
  • Protection Rating: IP67-rated sealed connectors providing protection against dust and moisture ingress
  • Temperature Performance: Operating range from -30°C to +85°C
  • Harness Architecture: Fiberglass-reinforced conduit sleeves with epoxy-filled junction boxes
  • Electrical Compliance: Meets SAE-J1939 standards for CAN-bus communication networks
Material & Performance Features
The wiring harness is manufactured utilizing premium-grade materials certified to UL, CE, VDE, ISO9001, and RoHS international standards, ensuring exceptional electrical safety and environmental compliance. Conductors feature high-purity oxygen-free copper with precision tin plating, delivering superior electrical conductivity and corrosion resistance in harsh operating environments exposed to hydraulic fluids, diesel spillage, abrasion, and weather elements.
Interchange Part Numbers
275-7004; 2757004; CA275-7004
