| ชื่อแบรนด์: | WESPC |
| หมายเลขรุ่น: | 3142U051 |
| ขั้นต่ำ: | 10 |
| ราคา: | $2-$5(1 Piece) |
| รายละเอียดบรรจุภัณฑ์: | กล่องกระดาษ |
| เงื่อนไขการชำระเงิน: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

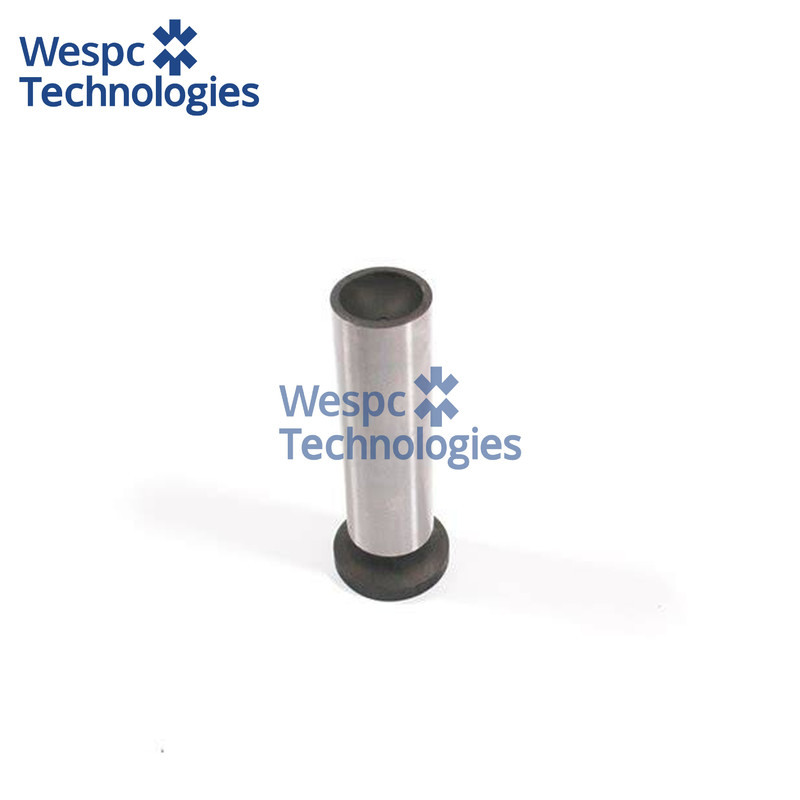

WESPC Valve Tappet 3142U051 For Perkins 1104C-E60TAG4 1104D-E44T TA Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3142U051 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
3142U051 is a hydraulic (self-adjusting) valve tappet used on the 4-cylinder Perkins 1104C-E60TAG4, 1104D-E44T/TA and 6-cylinder 1106C-E60TAG/TA engines; it is also specified for Caterpillar C6.6 and C7.1 builds. Typical installations include JCB 3CX/4CX back-hoe loaders, CAT 320D2 excavators, 100 kVA “Vista A” generator sets, CLAAS Lexion combines and MF 5400-series tractors. The tappet locates between the camshaft lobe and the push-rod, maintaining zero valve lash throughout the 12 000 h overhaul interval at engine speeds up to 2 200 min⁻¹.
Technical specifications:
Overall length 30 mm, head diameter 22 mm, stem diameter 12 mm, cam-contact face radius 600 mm, mass 168 g. Body is drop-forged from 20CrMo steel (0.20 % C, 1 % Cr, 0.20 % Mo), through-hardened to 58 HRC at the crown and 45 HRC on the stem to resist brinelling under 12 kN spring load. Crown surface is phosphate-coated 5 µm to assist initial running-in, then flash-oiled for corrosion-free storage.
Material & performance features:
The 20CrMo alloy offers 900 MPa tensile strength and 12 % elongation, resisting impact fatigue when the cam lifts 9 mm at 30 g acceleration. Induction-hardened crown depth is 2.0 mm, delaying pitting beyond 8 000 h even when sulphated ash fuel is used.
Interchange part numbers:
PERKINS 3142U051, T420076, 4646253, 3142U031, 3142U052, 3142U053, AGCO 4222069M1, 740671M, VAPORMATIC VPA2603, KMP 3142U051, FPS VT-3142U051, ITM VOE3142U051, FAI VT-3142U051, AJUSA 8103142U051, GLYCO VT-Per 4.236, MAHLE VT-3142U051, AE 3142U051, CLEVITE VT-3142U051, TOPLINE 3142U051, VMC 3142U051, MARINE D’USTRIE 3142U051, KINGSLAND 3142U051, AIC 3142U051, WDPART 3142U051.
