| Nguồn gốc: | TRUNG QUỐC |
| Hàng hiệu: | WESPC |
| Chứng nhận: | ISO9001 |
| Số mô hình: | 120406050 |

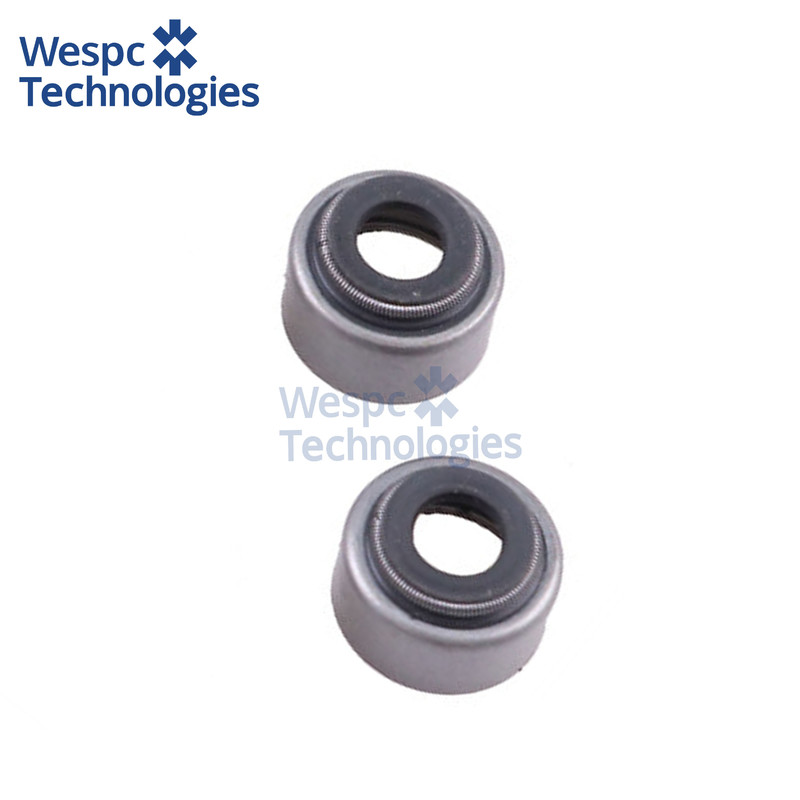

WESPC Exhaust Valve Stem Seal 120406050 For Perkins 403D-11 403D-15 403D-17 404D-15
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
120406050 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
120406050 is the exhaust-valve stem seal for Perkins 403D-11, 403D-15, 403D-17, 404D-15, 404D-22 and 404D-22T three- and four-cylinder diesels. It is therefore fitted to JCB 802-803, Cat C1.1-C1.5, Linde forklifts, FG Wilson P13-5 to P22-5 generator sets, Massey-Ferguson 1700E tractors and LiuGong 906/908 mini-excavators that share the same cylinder-head machining.
Technical specifications:
Nitrile-rubber lip seal with spring-loaded 8 mm ID, 14 mm OD, 7 mm height; operating −30 °C to 120 °C in 15W-40 oil mist, withstands 0.5 bar crank-case pulse and 24 h salt-spray without loss of elasticity. The lip is moulded to Ra 0.4 µm to micro-seal the 8 mm exhaust-valve stem and prevent oil carry-over into the exhaust port.
Material & performance features:
FKM/nitrile blend is asbestos-free and bonded to a steel carrier for 25 % tear strength vs. cork substitutes; compression set <15 % after 70 h at 120 °C, providing >8 000 h leak-free life in 24/7 generator duty before replacement is required.
Interchange part numbers:
120406050 crosses directly with U20406140, 120406070, 10000-65742, 915-562, 915-563, 440-5104 and SBA120406050.
