| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | 2646F009 |

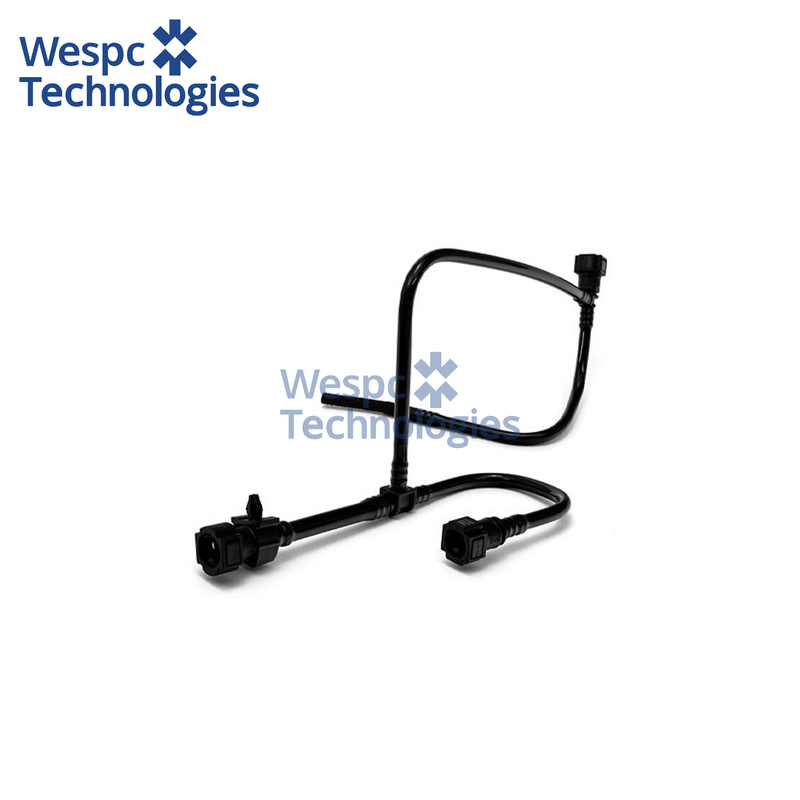

WESPC 2646F009 High Pressure Fuel Pipe for Diesel Engine Injection Systems
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2646F009 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Product Description:
The WESPC 2646F009 High Pressure Fuel Pipe is specifically designed for modern diesel fuel injection systems requiring reliable performance under extreme pressures. This critical component ensures precise fuel delivery to injectors while maintaining system integrity in heavy-duty applications. Engineered to meet rigorous standards, it provides durable service in construction equipment, marine engines, and power generation systems where consistent fuel pressure is essential for optimal combustion.
Technical Specifications:
This fuel pipe features a 550mm length with 7mm internal diameter and 11mm external diameter construction. The reinforced nylon core with stainless steel braiding withstands continuous operating pressures up to 350 bar. Precision-machined fittings maintain connection integrity within 0.008mm tolerance. Designed for severe service conditions, it operates effectively across a temperature range of -40°C to +150°C while resisting fuel additives and environmental contaminants.
Performance Features:
The 2646F009 incorporates advanced materials technology to achieve superior burst strength and fatigue resistance. The smooth bore design minimizes flow restrictions and maintains laminar fuel flow characteristics. The abrasion-resistant steel braiding provides exceptional protection against mechanical damage while allowing necessary flexibility for engine vibration absorption. Specialized manufacturing processes ensure dimensional stability with length variations controlled within ±0.5mm.
Compatibility Information:
This component serves as a direct replacement for original equipment fuel lines in various common rail and unit injection systems. Its standardized SAE J2044 compliant fittings ensure proper sealing and connection security in most modern diesel applications. The universal design accommodates multiple engine configurations without requiring system modifications.
Installation Guidelines:
Before installation, thoroughly inspect all sealing surfaces and connection points. Ensure proper routing to avoid sharp bends or contact with moving components. Tighten fittings to manufacturer specified torque values using appropriate tools. Perform pressure testing after installation to verify leak-free operation. Regular visual inspections during maintenance intervals are recommended to check for surface wear or deformation.
Quality Assurance:
Each WESPC 2646F009 undergoes comprehensive pressure cycling tests and dimensional verification. The product is backed by a 12-month limited warranty against manufacturing defects. Production adheres to ISO 9001 quality management systems with complete material certification and batch traceability.
