| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | 4133L049 |
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
4133L049 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Product Description:

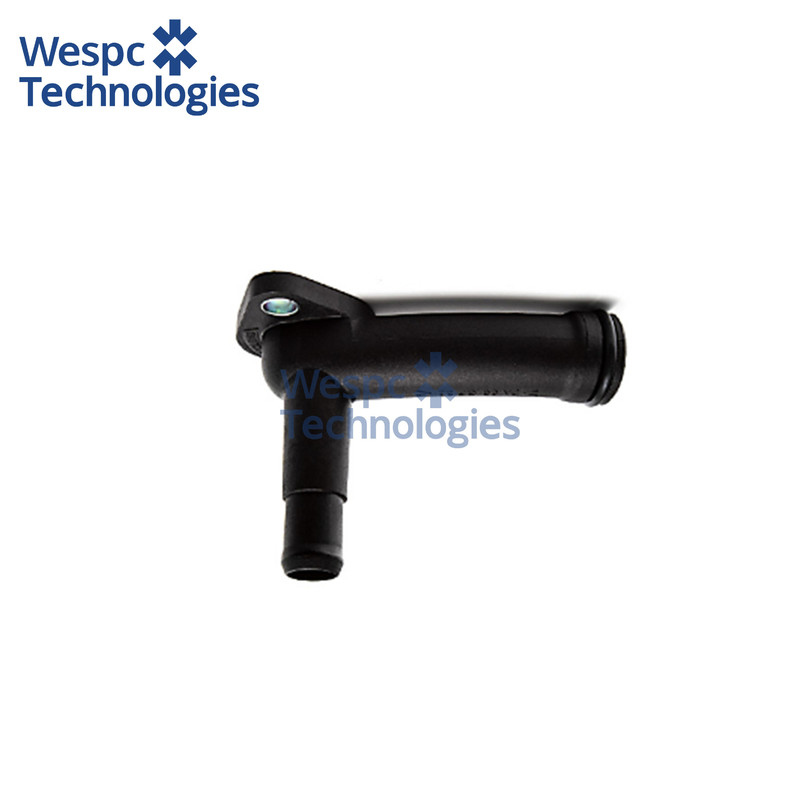

The WESPC Water Pipe 4133L049 is a critical cooling system component specifically engineered for Perkins diesel engines. This coolant transfer pipe ensures efficient fluid circulation between the engine block and radiator, maintaining optimal thermal management under demanding operating conditions. Manufactured to meet original equipment specifications, it provides reliable performance in construction equipment, agricultural machinery, and power generation applications where consistent engine cooling is essential.
Technical Specifications:
This coolant pipe measures 415mm in overall length with a 42mm outer diameter and 38mm inner diameter. Constructed from high-grade brass alloy (CZ121), it features a consistent wall thickness of 2mm and weighs approximately 1.2kg. The pipe incorporates precision-formed flared ends with 45-degree angled connections for secure sealing. Designed to operate within a temperature range of -40°C to +130°C, it withstands system pressures up to 3.0 bar.
Performance Features:
The 4133L049 undergoes precision bending and forming processes that maintain uniform wall thickness throughout complex geometries. Internal surface polishing minimizes flow resistance and prevents particulate accumulation. The brass construction offers superior corrosion resistance against ethylene glycol-based coolants and provides excellent thermal conductivity. Computer-controlled bending ensures exact reproduction of original equipment routing paths.
Compatibility Information:
Engineering verification confirms this component is compatible with Perkins 1100 series diesel engines, including models 1104C-44T and 1104D-44TA. The pipe configuration matches original equipment specifications for coolant routing between water pump assembly and cylinder head connections. Proper fitment has been validated for engines requiring part number 4133L049.
Installation Guidelines:
Clean all mating surfaces thoroughly before installation. Apply manufacturer-recommended sealant to connection joints and tighten flange bolts to specified torque values using a calibrated torque wrench. Refill cooling system with approved coolant mixture according to engine specifications. Conduct pressure testing after installation to verify leak-free operation before returning equipment to service.
Quality Assurance:
Each water pipe undergoes individual pressure testing at 4.5 bar and dimensional verification against master fixtures. The product is supported by a 12-month warranty covering material and manufacturing defects. Manufacturing processes adhere to ISO 9001 quality management standards with complete material traceability from raw material to finished product.
