| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A117 |

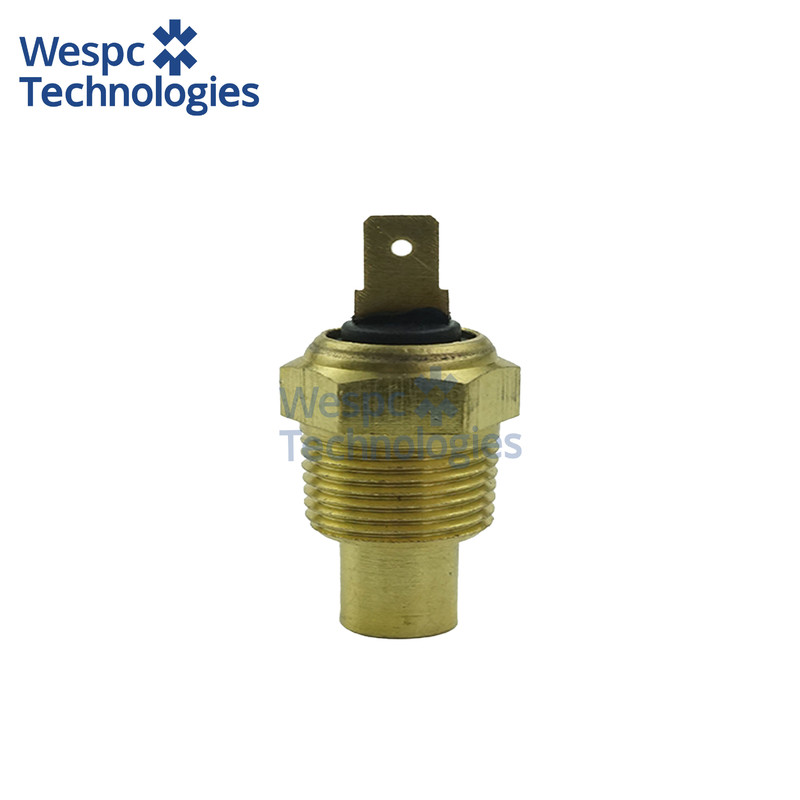

WESPC Water Temperature Sensor 2848A117 For Perkins Engine 1004-4 1004-4T
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A117 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 3/8" BSPP male thread and 22 mm hex, 58 mm overall length and 115 g mass. Its resistance decreases from 9.8 kΩ ±3 % at 25 °C to 180 Ω ±10 % at 100 °C, delivering a steep, repeatable curve that the ECU can resolve to ±1 °C.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin, achieving IP67 ingress protection. A fluorosilicone O-ring and integrated steel shield prevent moisture ingress during thermal cycling from –40 °C to +120 °C.
Interchange part numbers:
2848A117, 2755A008, 4222197M1, 4223863M1, 934-525, 10000-53878, AG131216, WR131216, 2848A116, 2848A118, 2848A119, 2848A120, 2848A121, 2848A122, 2848A123, 2848A124, 2848A125, 2848A126, 2848A127, 2848A128, 2848A129, 2848A130.
