| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A103 |

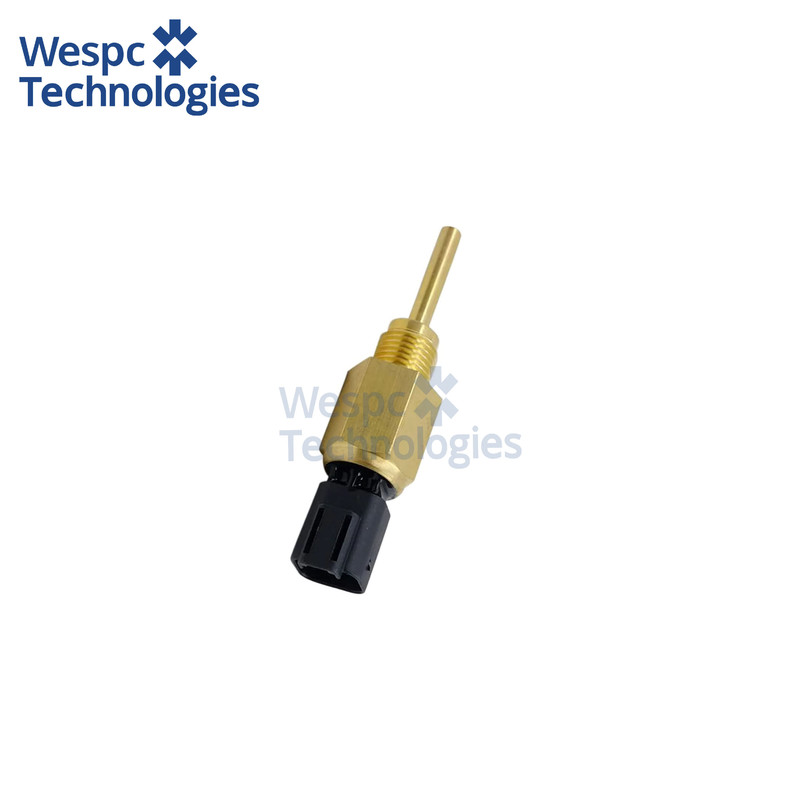

WESPC Water Temperature Sensor 2848A103 For Perkins Engine 1004-4 1004-4T 1004-42
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A103 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 3/8" BSPP male thread and 22 mm hex, 56 mm overall length and 115 g mass. Its resistance falls from 9.8 kΩ ±3 % at 25 °C to 180 Ω ±10 % at 100 °C, delivering a steep, repeatable curve that the ECU can resolve to ±1 °C. Response time from ambient to operating temperature in flowing coolant is less than 15 seconds.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin, achieving IP67 ingress protection.
Interchange part numbers:
2848A103, 2755A010, 4222198M1, 4223864M1, 934-526, 10000-53877, AG131217, WR131217, 2848A102, 2848A104, 2848A105, 2848A106, 2848A107, 2848A108, 2848A109, 2848A110, 2848A111, 2848A112, 2848A113, 2848A114, 2848A115, 2848A116, 2848A117, 2848A118, 2848A119, 2848A120.
