| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1807339C92 |

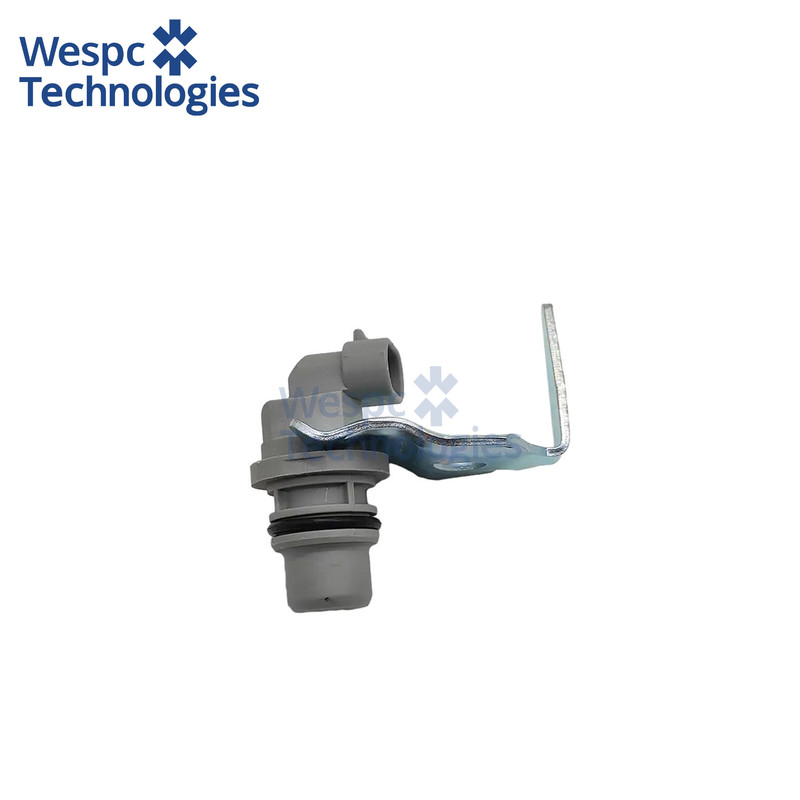

WESPC Camshaft Position Sensor 1807339C92 For Perkins Engine 1300
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1807339C92 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M12 × 1.5 with 19 mm hex and 30 mm probe reach for direct mounting into the timing-gear cover adjacent to the camshaft reluctor wheel. Output signal is digital Hall-effect, 3-wire, 8–32 Vdc supply, 0–8 kHz frequency range corresponding to 0–4 000 r/min camshaft speed, with built-in reverse-polarity and load-dump protection to +40 Vdc.
Material & performance features:
Probe body is precision-machined from 1.4305 (AISI 303) stainless steel for superior resistance to engine oil, coolant splash and road salt; the sensing tip is over-moulded in high-temperature PPS polymer rated to 150 °C and houses a rare-earth magnet for stable signal amplitude across the full temperature envelope.
Interchange part numbers:
1807339C92, 505-5110, 1885812C91, 1885781C91, 10000-18092, 4224837M1, 4222204M1, 2755A016
