| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC42MR |

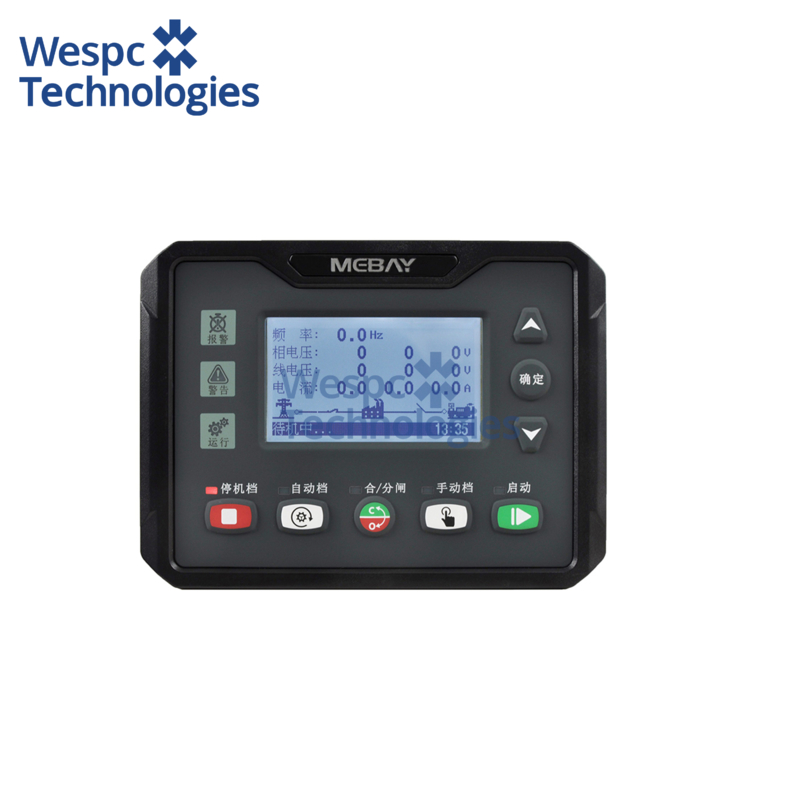

WESPC Original DC42MCR Low Temp Genset Controller for Diesel Gasoline
|
Operation Voltage |
DC8-36V Continuous |
| Rotate speed sensor Frequency | 50-10000Hz |
| Working condition | -25-65℃ |
| Storage condition | -40-85℃ |
| MAX Accumulating Time | 99999.9Hours(Min Store time:6min) |
| Overall dimension | 142mm*105mm*45mm |
| Panel cutout | 116mm*90mm |
| Weight: | 0.6Kg |
Summary
This series controller is specially designed for ultra-low temperature working range (-40-70℃), mainly used in Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
2.8 inch LCD screen display with with heating function. the UI design of analog pointer and digital display can display a variety of generator set parameters and states at the same time, and can effectively implement alarm protection and stop when the generator set is not working normally.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Main Features
There are two Models under DC42MR series.
DC42MR: Used for single machine automation. Start/Stop through remote start signal. At the same time Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset. Standard RS485 port.
DC42MCR: Based on DC42MR: Change the speed sensor (MPU) detection to CAN communication interface, and adapt to more than 40 kinds of engines.
Dual core 32bit high performance single chip microcomputer.
2.8 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USB port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
Standard CAN communication port, built-in J1939 protocol, has matched more than 40 kinds of engines;
Various kinds of parameters display.
Input/output function, status can be shown directly.
Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
Maintenance countdown function, can set maintenance time or date.
With the event recording function, it can save 100 groups of alarm records, including the relevant parameters of the unit when a fault alarm occurs; it can save 5000 system logs, which is convenient for finding the cause of the fault;
Totally 6relay’s output, Among them, 2 high-power relay outputs and 4 high-power MOS outputs. The function is configurable, and each channel has more than 20 kinds of functions to choose from;
With 4 switches input, up to 20 functions optional;
3 sensor simulation input connectors, the oil pressure sensor is compatible with voltage signal input, and various display units can be configured.
Battery charging control function,which can protect the battery according to battery voltage status.
Sensor can be self-defined by front face button or PC software.
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP54
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
