| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV03VS |

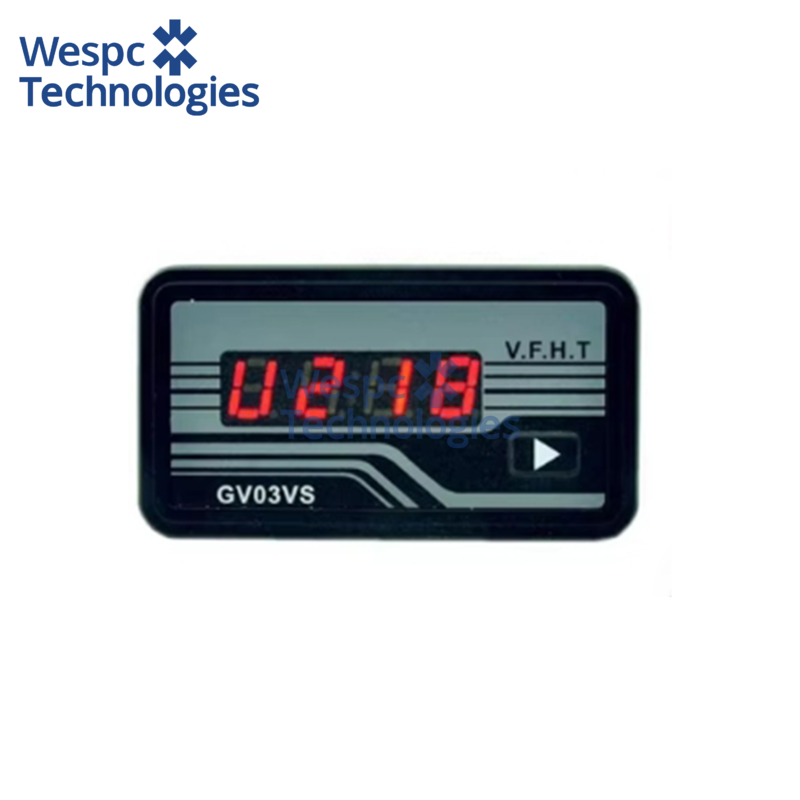

WESPC Original GV03VS Digital Multifunctional Genset Frequency Meter Parts
| Working power | AC165～275V/ AC280～450V9(380VAC) |
| Consuming power | MAX:1 W |
| Operation temperature range | -40℃ ～ 75℃ |
| Size (W * H * D) | 60mm * 33mm * 51mm |
| Installation Size(W * H) | 51mm * 26mm |
| Weight | 50g |
Summary
GV03VS is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and running time. This module can replace old mechanical meters, It uses normal screw for connection which is more convenient for installation.
Features
Voltage, frequency, accumulated running time and current running time display
Over voltage,Low oil level protections
Results shown by 4-position digital LED tube
Page change buttons
220V/380V options
Parameters display
Voltage
Frequency
Accumulated Time
Running time
Range and accuracy
Voltage: AC165～275V(220VAC ),/AC300～460V(380VAC),deviation≦±1%
Frequency: 45-70HZ,deviation≦±0.5%
Accumulated time: 0-9999H,deviation≦±1%
