| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2656F854 |

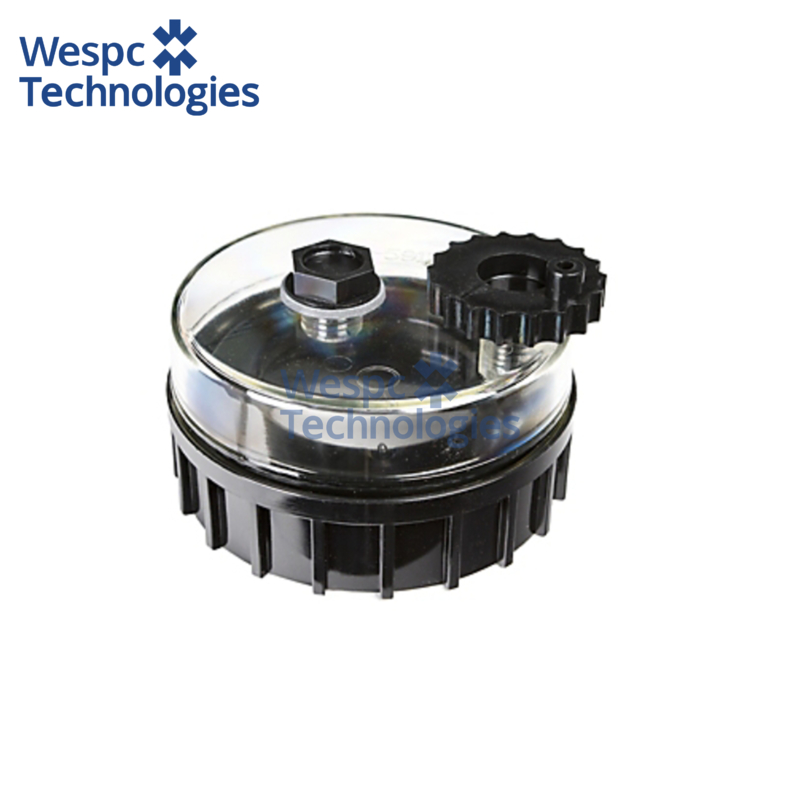

WESPC Fuel Filter Bowl 2656F854 For Perkins 4.236 1004-40 1006-60 Diesel Engines
| Quality Class: | High-Quality |
|
After-sales Service Provided |
Video Technical Support, Online Support |
| Packaging | Carton |
| Place of Origin | China |
| Warranty | 1 Year |
| Stock | Yes |
Application
This fuel filter bowl is engineered for mechanical-injection Perkins 4.236, T4.236 and AT4.236 turbocharged diesel engines (4.0 L), as well as the later 1004-40, 1004-40T, 1006-60 and 1104D series that share the same block layout. These engines are commonly used in agricultural tractors, combine harvesters, generator sets and industrial machinery where efficient fuel filtration is critical for engine performance and longevity.
Technical specifications
Thread size M12x1.5, sealing ring outer diameter 38 mm, overall height 62 mm. The bowl is designed to work with standard fuel filter cartridges and includes a integrated water drainage valve. Constructed to operate under continuous pressure up to 5 bar with temperature resistance from -30°C to +100°C.
Material & performance features
The housing is manufactured from corrosion-resistant polyamide composite with glass fiber reinforcement, providing structural integrity under vibration and thermal cycling. The transparent section is made from fuel-resistant polycarbonate allowing visual inspection of filter condition. Sealing is achieved through a nitrile O-ring compatible with diesel and biodiesel blends.
Interchange part numbers
2656F854, 2656F856, 2643C256, 2643C257, 2643C258.
